2002 0.25" Cap. 120" Width
Location:
Harrison, NJ
Price:
$39,500 USD
Manufacturer:
Gasparini
Model:
CO-30006
Capacity:
1/4" - 5/16"
Weight:
19,800 LBS.

Specifications

Condition:
used
Year:
2002
Serial number:
0402-4CH0
Stock number:
150629
Blade length:
120"
Throat depth:
19.7"
Maximum force:
22 TONS
Approx. weight:
19,800 LBS.
Back gauge depth:
39.4"
Approx. dimensions:
141.7" x 82.7" x 74.8" H
Strokes per minute:
15-30
Rake angle adjustment:
5 DEG. - 3 DEGREES
Capacity in mild steel:
1/4" - 5/16"
Capacity is stainless steel:
5/32" - 1/4"
Distance between the side frames:
126"
Subcategory:
Shears

Description

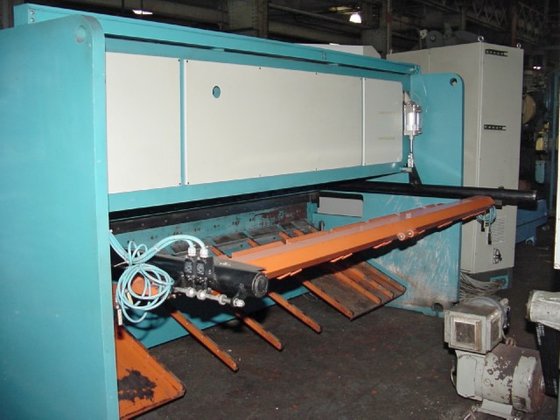

10' x 1/4" GASPARINI HYDRAULIC NC CONTROLLED SHEAR
MODEL CO3006 S/N 0402/4940 NEW 2002
BLADE LENGTH ........................................ 120"
CAPACITY IN MILD STEEL .............................. 1/4" - 5/16"
CAPACITY IS STAINLESS STEEL ......................... 5/32" - 1/4"
DISTANCE BETWEEN THE SIDE FRAMES .................... 126"
THROAT DEPTH ........................................ 19.7"
MAXIMUM FORCE ....................................... 22 TONS
RAKE ANGLE ADJUSTMENT ............................... .5 DEG. - 3 DEGREES
STROKES PER MINUTE .................................. 15-30
BACK GAUGE DEPTH .................................... 39.4"
14.8 HP MOTOR - 460 VOLT / 3 PHASE
EQUIPPED WITH:
- DELEM DAC-350 NUMERICAL CONTROL HANDLES NOT ONLY THE BACK GAUGE BUT ALSO THE RAKE ANGLE,
BLADE GAP, CUTTING LENGTH, CUTTING DEPTH, AUXILLIARY FUNCTIONS AND CAN HOLD UP TO 1000
PROGRAMS.
- ANTI-TWIST DEVICE WITH CYLINDERS FITTED BELOW THE BOTTOM BLADE FOR HOLDING MATERIAL
AGAINST THE UPPER BLADE
- PNEUMATIC DISAPPEARING BACK GAUGE ALLOWS THE PASSAGE OF LARGER SHEETS
- TRANSPARENT FRONT GUARD TO FACILITATE POSIITIONING OF SMALLER PIECES
- BALL BENCH FOR HANDLING OF SHEETS
- REAR SHEET SUPPORTS
- SQUARING ARM
- SUPPORT ARMS WITH BALLS
- HOLDDOWN CYLINDERS WITH AUTOMATIC PRESSURE ADJUSTMENT PROPROTIONAL TO CUTTING FORCE
- FOOT PEDAL MOUNTED ON STAND WITH EMERGENCY STOP
- FRONT GAUGING SYSTEM
APPROX. DIMENSIONS: 141.7" x 82.7" x 74.8" H
APPROX. WEIGHT: 19,800 LBS.
