1994 19.8" Swing 24" Centers
Location:
Harrison, NJ
Weight:
6,000 LBS

Specifications

Condition:
used
Year:
1994
Serial number:
613574
Stock number:
153169
Fine:
0.1"
Coarse:
0.8"
Fine 2:
0.04"
Grinding:
16" X 2" X 5"
Overhanging:
29- 1/2"
Table swivels:
11 DEGREES
Plunge grinding:
INFEED SPEED ........... 0.00001 TO .0001 IN/S
Reversing dwell:
0 TO 5 SECONDS
Workhead swivels:
360 DEGREES
Stroke of spindle:
1- 3/16"
Grinding wheel speeds:
1500, 1700, 2200 RPM
Inside taper of spindle:
#4MT
Advance/retraction stroke:
1-9/16"
Longitudinal table travel:
35- 7/16"
1 graduation of feed scale:
0.0002"
Approximate machine weight:
6,000 LBS
Automatic hydraulic infeed:
0 TO 0.037"
W/locking every 90 degrees:
270 DEGREES
Max. swing w/factory risers:
19.8"
Infeed per rev. of handwheel:
COARSE ... 0.3"
Inside taper of work spindle:
#5MT
Micrometer stop, 1 graduation:
0.00005"
Auto infeed per table reversal:
0.00004" TO 1.18"
Approximate floor space required:
102" X 64" X 66"H
Infinit. variable spindle speeds:
6 - 600 RPM
Grinding wheel (surface grinding):
9" X 1/2" X 3"
Distance between centers (nominal):
23- 5/8"
Transverse movement of wheel slide:
8- 21/32"

Description

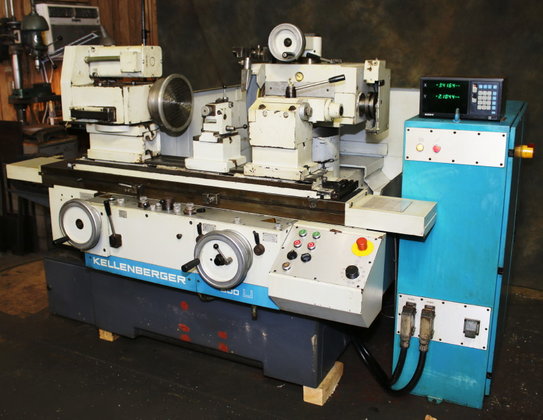

19.8" x 24" KELLENBERGER "SWISS" "HIGH PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
THIS MACHINE HAS FACTORY RISERS, CAN SWING 19.8"
THREE WHEELHEAD MACHINE - O.D./I.D./FACE GRINDING
MODEL: 600U-175 S/N: 613574 NEW: 1994
MAX. SWING w/FACTORY RISERS ............... 19.8"
DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
OVERHANGING ............................. 29- 1/2"
TABLE:
LONGITUDINAL TABLE TRAVEL ................. 35- 7/16"
LONGITUDINAL TABLE TRAVEL PER
TURN OF HANDWHEEL:
COARSE .................................. 0.8"
FINE .................................... 0.1"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM
TABLE SWIVELS ............................. 11 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS
GRINDING WHEEL INFEED:
1 GRADUATION OF FEED SCALE .............. 0.0002"
AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"
AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"
PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S
MICROMETER STOP, 1 GRADUATION ........... 0.00005"
UNIVERSAL GRINDING SPINDLE HEAD:
TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"
INFEED PER REV. OF HANDWHEEL: COARSE ... 0.3"
FINE ..... 0.04"
HYDRAULIC RAPID WHEEL SLIDE
ADVANCE/RETRACTION STROKE .............. 1-9/16"
GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM
GRINDING WHEEL FOR CYLINDRICAL
GRINDING ............................... 16" X 2" X 5"
GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X 3"
SWIVEL OF GRINDING HEAD
W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES
WORKHEAD:
INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM
WORKHEAD SWIVELS ........................ 360 DEGREES
INSIDE TAPER OF WORK SPINDLE ............ #5MT
TAILSTOCK:
INSIDE TAPER OF SPINDLE ................. #4MT
STROKE OF SPINDLE ........................ 1- 3/16"
APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H
APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS
MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
SPARKOUT TIMER
DUAL LEFT-HAND & RIGHT-HAND WHEEL MOUNTING
EQUIPPED WITH:
- 19.8 SWING, WITH FACTORY ISSUE RISERS FROM KELLENBERGER
- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD BY TURN OF HANDWHEEL
- TAILSTOCK HAS "MICRO-CORECTION" OF TAPER - FOR HIGH ACCURACY WORK
- SINE BAR OPTION FOR SETTING THE WORKHEAD SWIVEL
- SWING AROUND INTERNAL GRINDING ATTACHMENT
- (1) INTERNAL GRINDING SPINDLE, GRINDING WHEEL ON SPINDLE IS 3" DIA.
- FACE GRINDING WHEELHEAD SET-UP, WITH 9" DIA. WHEEL
- 16" O.D. WHEEL
- 9" MAGNETIC CHUCK WITH ADAPTOR PLATE & DRAW BAR
- STANDARD WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE
- TABLE MOUNTED SWING BACK DIAMOND DRESSER WITH MICROMETER ADJUSTMENT,
WITH MOUNTING BLOCK FOR CORRECT CENTER HEIGHT
- SET OF DRIVE DOGS
- ASSORTMENT OF CENTERS
- ASSORTMENT OF WRENCHES, AND WHEEL PULLER FOR REMOVING THE GRI
