1952 16" Chuck 15HP Spindle
Location:
Harrison, NJ
Weight:
6,500 LBS.

Specifications

Condition:
used
Year:
1952
Serial number:
6924
Stock number:
152918
Chuck diameter:
16"
Chuck speeds (4):
15, 24, 41 & 64 RPM
Approximate weight:
6,500 LBS.
Swing inside guards:
21"
Grinding wheel speed:
1160 RPM
Maximum load on chuck:
500 LBS.
Approximate dimensions:
7"L X 5'6W X 7'7"H
Grinding wheel diameter:
11"
Vertical range under new wheel:
7"

Description

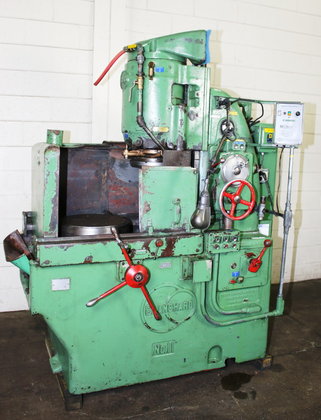

16" BLANCHARD ROTARY SURFACE GRINDER
MODEL: 11-16 S/N: 6924 NEW: 1952
CHUCK DIAMETER .................................... 16"
SWING INSIDE GUARDS ............................... 21"
VERTICAL RANGE UNDER NEW WHEEL .................... 7"
MAXIMUM LOAD ON CHUCK ......................... 500 LBS.
GRINDING WHEEL DIAMETER ........................... 11"
GRINDING WHEEL SPEED ......................... 1160 RPM
CHUCK SPEEDS (4) .................. 15, 24, 41 & 64 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.003" TO .070"
APPROXIMATE DIMENSIONS..................7"L X 5'6W X 7'7"H
APPROXIMATE WEIGHT ......................... 6,500 LBS.
EQUIPPED WITH:
15 HP 3/60/220-440 VOLT SPINDLE MOTOR
7" VERTICAL RANGE (STANDARD)
SELF-CONTAINED COOLANT SYSTEM (WET BASE)
16" ELECTRO-MAGNETIC CHUCK
LATER MODEL "ELECTRO-MATIC II" VARIABLE HOLD NEUTROFIER CONTROL
GRINDING WHEEL HOLDER FOR A DIAMOND WHEEL
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
INTERLOCKED WITH FEED.
PRESENTLY WIRED FOR 3/60/440 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
