1989 10" Swing 18" Centers
Location:
Harrison, NJ
Model:
1311
Weight:
4,000 LBS.

Specifications

Condition:
used
Year:
1989
Serial number:
BO-16361
Stock number:
153244
Wheel size:
12" X 1" X 5"
Maximum swing:
10"
Wheelhead motor:
5.5 HP
Wheel speeds (2):
2,000 & 2,680 RPM
Approx. machine dims:
86"L-R x 58"D x 69"H
Top slide adjustment:
4- 1/2"
Reduction in diameter:
0.0002" TO .0012"
Approx. machine weight:
4,000 LBS.
Workhead spindle taper:
#3MT
Distance between centers:
18"
Cross feed handwheel grad:
0.0002"
Workhead spindle speeds (6):
40 TO 320 RPM
Fine hand traverse knob grad:
0.0005"
Auto infeed @ table reversals:
0.0001" TO .0006"
Wheelhead, left & right of center:
180 DEGREES
Adjutment of table, included angle:
20 DEGREES
Manual traverse, handwheel per rev:
0.50"

Description

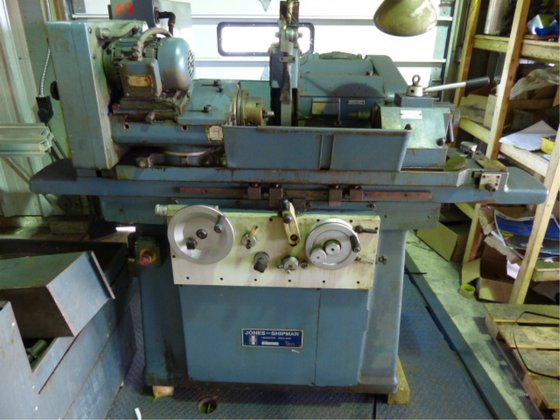

10" X 18" JONES & SHIPMAN "HIGH PRECISION" "MADE IN ENGLAND"
UNIVERSAL CYLINDRICAL GRINDER
MODEL: 1311-E S/N: BO-16361 NEW: 1989
MAXIMUM SWING ..................................... 10"
DISTANCE BETWEEN CENTERS .......................... 18"
ADJUTMENT OF TABLE, INCLUDED ANGLE ......... 20 DEGREES
LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 180" IPM
MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
FINE HAND TRAVERSE KNOB GRAD. ................. 0.0005"
WHEELHEAD:
CROSS FEED HANDWHEEL GRAD. ................... 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB ....... 0.0001"
AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO .0006"
FEED @ REVERSAL OF TABLE,
REDUCTION IN DIAMETER .............. 0.0002" TO .0012"
CONTINUOUS (PLUNGE) INFEED RATE .... 0.0001" TO .0006"
(PLUNGE) REDUCTION IN DIA. FROM .. 0.004" TO .072" IPM
MAX. RANGE OF PLUNGE FEED ... 0.8 REV. OF THE HANDWHEEL
TOP SLIDE ADJUSTMENT ......................... 4- 1/2"
WHEELHEAD, LEFT & RIGHT OF CENTER ........ 180 DEGREES
WHEEL SIZE ............................ 12" X 1" X 5"
WHEEL SPEEDS (2) .................. 2,000 & 2,680 RPM
WHEELHEAD MOTOR .............................. 5.5 HP
WORKHEAD SPINDLE SPEEDS (6) ............ 40 TO 320 RPM
WORKHEAD SPINDLE TAPER .......................... #3MT
APPROX. MACHINE DIMS. ........... 86"L-R x 58"D x 69"H
APPROX. MACHINE WEIGHT ..................... 4,000 LBS.
MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
- POWER TABLE TRAVERSE
- AUTO INFEED
- PLUNGE INFEED
FINE FEED MECHANISM FOR INFEED
FINE FEED KNOB FOR TABLE TRAVERSE
DUAL LIVE/DEAD WORKHEAD SPINDLE
EQUIPPED WITH:
ADAPTOR PLATE AND SMALL 3-JAW CHUCK
COOLANT SYSTEM WITH PAPER FILTRATION
MACHINE IS WIRED FROM THE FACTORY FOR 3/60/575 VOLTS
SPECIAL NOTE:
TRANSFORMER IS AVAILABLE FOR 200-208-220-230-240-440-460 OR 480 VOLTS,
PRICE DEPENDS UPON VOLTAGE SELECTED, TYPICALLY COST WILL BE BETWEEN
$650 TO $900
** INSPECT UNDER POWER IN N.J. **
**** ORIGINAL CONDITION & APPEARANCE ****
