Top Seller
2004 25" Swing 60" Centers
Location:
Harrison, NJ
Price:
$24,500 USD
Manufacturer:
Tarnow
Model:
TUJ-630M
Distance between Centers:
60"

Specifications

Condition:
used
Year:
2004
Serial number:
524
Stock number:
153215
Inch:
2 - 56 TPI
Cross:
00035 - .360 IPR
Metric:
5 - 14 mm
Longitudinal:
0007 - .720 IPR
Swing in gap:
35"
Width of bed:
14.57"
Approx weight:
8,000 LBS
Length of gap:
11-1/4"
Swing over bed:
25"
Hole thru spindle:
3.543
Spindle speeds (18):
20 - 1600 RPM
Swing over carriage:
17"
Approximate dimensions:
122"L x 60"W x 60"H
Distance between centers:
60"
Tailstock spindle travel:
6-1/2"
Tailstock spindle diameter:
3-1/4"
Tailstock spindle center taper:
#5 MORSE
Subcategory:
Engine lathes
Subcategory 2:
Toolroom machines

Description

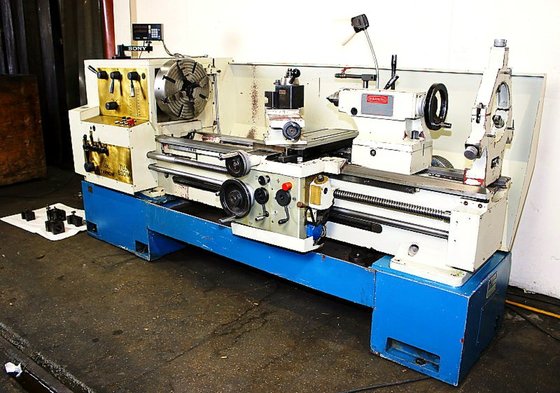

25"/35" x 60" TARNOW REMOVABLE GAP
BED ENGINE LATHE
MODEL: TUJ 630M, S/N: 524, NEW: 2004
SPECIFICATIONS:
SWING OVER BED .......................... 25"
SWING IN GAP ............................ 35"
SWING OVER CARRIAGE ..................... 17"
LENGTH OF GAP ........................... 11-1/4"
DISTANCE BETWEEN CENTERS ................ 60"
HOLE THRU SPINDLE ....................... 3.543
SPINDLE SPEEDS (18) ..................... 20 - 1600 RPM
TAILSTOCK SPINDLE CENTER TAPER .......... #5 MORSE
TAILSTOCK SPINDLE TRAVEL ................ 6-1/2"
TAILSTOCK SPINDLE DIAMETER .............. 3-1/4"
WIDTH OF BED ............................ 14.57"
FEEDS:
LONGITUDINAL ....................... .0007 - .720 IPR
CROSS .............................. .00035 - .360 IPR
THREADS:
INCH ................................ 2 - 56 TPI
METRIC .............................. .5 - 14 mm
APPROXIMATE DIMENSIONS .................. 122"L x 60"W x 60"H
APPROX WEIGHT ........................... 8,000 LBS
EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILITY THROUGH QUICK CHANGE GEARBOX
-
SONY
TWO AXIS DIGITAL READOUT
- ALORIS MODEL:
DA
TOOLPOST WITH HOLDERS
- ROLLER TYPE STEADY REST
- 3-JAW CHUCK
- 15-1/2" 4-JAW CHUCK
- DEAD CENTER
- THREADING DIAL
- INDUCTION HARDENED BEDWAYS
- COOLANT SYSTEM w/ FULL LENGTH REAR SPLASH GUARD
- REMOVABLE CHIP PAN
- 15 HP 3/60/220 VOLT SPINDLE DRIVE MOTOR & ELEC CONTROLS
VIDEO:

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
