Top Seller
14" Blade Dia 3.5hp HP
Location:
Harrison, NJ
Manufacturer:
Dake saws
Model:
Super Technics 350CE Manual *Made in Italy*
Motor:
3.5
Weight:
650

Specifications

Condition:
new
Stock number:
153309
Phase:
3
Speeds:
22/44
Weight:
650
Voltage:
220/440
Age info:
NEW
C height:
75"
A work height:
40"
Motor horsepower:
3.5
Maximum blade diameter:
14
D floor space left to right:
24-3/4"
E floor space front to back:
23"
Tube 45˚ capacity (inches):
4
Tube 90˚ capacity (inches):
4-3/4
Square 45˚ capacity (inches):
3-3/8
Square 90˚ capacity (inches):
4-1/8
B overall front to back head up:
43"
Rectangle 45˚ capacity (inches):
3-3/8 x 2-3/4
Rectangle 90˚ capacity (inches):
6-1/4 x 3-1/2
Solid round 45˚ capacity (inches):
3
Solid round 90˚ capacity (inches):
3-3/8
Subcategory:
New cold saws

Description

DAKE SUPER TECHNICS 350CE
MANUAL COLD SAW
*MADE IN ITALY*
The Dake Super Technics 350CE model manual cold saw uses up to 14" circular cold saw blades, has a dual-speed 3.5 hp motor, and mounts on an included pedestal that houses a built-in coolant tank and pump. The blade rotates at either 22 or 44 rpm, selected by a switch. The saw head pivots up and down to cut, and rotates 45 degrees to the right and left of center for miter cuts, and 90 degrees to the right to cut slots. The work bed includes a cam-operated vise with gib adjustment and a cushioned clamping arm that helps prevent burrs in the final cutting stroke. The saw drive has an oversized steel spindle and a tapered bronze roller bearing gear assembly for heavy-duty use. The hardened and ground spindle shaft has ball bearing support for reliability. The clutch device can be adjusted for maintenance. The saw is wired for three-phase, 220 volt AC operation, and has protection for low voltage and thermal overload.
FEATURES
Head rotates 45° right and left of center for mitering.
Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
Bronze gear with tapered roller bearing support.
Reliable mechanical coolant pump with flow control adjustment.
Adjustable hinged pivot.
Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
STANDARD EQUIPMENT
Blade
Pedestal base
Tool kit
Gallon of coolant
Adjustable positive stop
SPECIFICATIONS
Maximum blade diameter ............................ 14
Motor horsepower .................................. 3.5
Voltage ........................................... 220/440
Phase ............................................. 3
Speeds ............................................ 22/44
Weight ............................................ 650
Solid round 90˚ capacity (inches) ................. 3-3/8
Solid round 45˚ capacity (inches) ................. 3
Tube 90˚ capacity (inches) ........................ 4-3/4
Tube 45˚ capacity (inches) ........................ 4
Square 90˚ capacity (inches) ...................... 4-1/8
Square 45˚ capacity (inches) ...................... 3-3/8
Rectangle 90˚ capacity (inches) ................... 6-1/4 x 3-1/2
Rectangle 45˚ capacity (inches) ................... 3-3/8 x 2-3/4

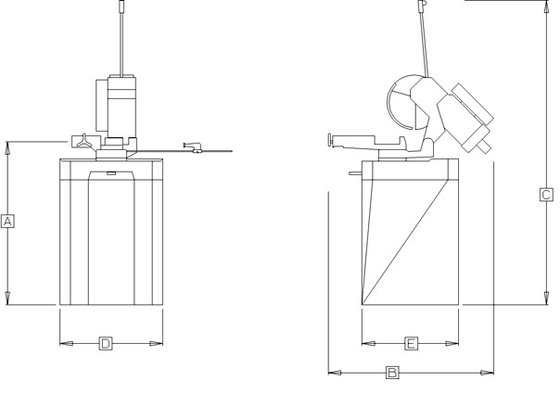

DIMENSIONS
A Work height ..................................... 40"
B Overall front to back head up ................... 43"
C Height .......................................... 75"
D Floor space left to right ....................... 24-3/4"
E Floor space front to back ....................... 23"
