Top Seller
14" Blade Dia 3.5hp HP
Location:
Harrison, NJ
Manufacturer:
Dake saws
Model:
Super Technics 350SA Semi-Auto *Made in Italy*
Motor:
3.5
Weight:
890

Specifications

Condition:
new
Stock number:
153330
Phase:
3
Speeds:
20-105
Weight:
890
Voltage:
220/440
Age info:
NEW
Motor horsepower:
3.5
Maximum blade diameter:
14
Tube 45˚ capacity (inches):
4
Tube 90˚ capacity (inches):
4-3/4
Square 45˚ capacity (inches):
3-3/8
Square 90˚ capacity (inches):
4-1/8
Rectangle 45˚ capacity (inches):
3-3/8 x 2-3/4
Rectangle 90˚ capacity (inches):
6-1/4 x 3-1/2
Solid round 45˚ capacity (inches):
3
Solid round 90˚ capacity (inches):
3-3/8
Subcategory:
New cold saws

Description

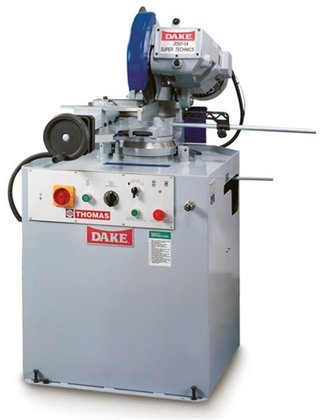

DAKE SUPER TECHNICS 350SA
SEMI-AUTO COLD SAW
*MADE IN ITALY*
The Dake Super Technics 350 Semi-Automatic Cold Saw is a cast iron cold saw that has a head that can rotate 45 degrees right and 60 degrees left for miter cuts. Industry leading dependability is achieved using an oversized spindle that features a splined steel shaft and heavy duty bronze gear that is supported with tapered roller bearings.
Push button, or foot switch saw head activation is used to avoid operator fatigue. Stroke distance is controlled by the shrouded feed cylinder. Clamping and un-clamping of the material is sped up by the adjustable pneumatic vise, which features a sliding gib. A mechanical coolant pump with flow control adjustment and a rugged fabricated steel base are also standard.
FEATURES
Push button or foot switch activation to avoid operator fatigue.
Shroud enclosed feed cylinder with sliding cams for fast cutting stroke adjustment.
Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke.
Adjustable clutch for more efficient operation and longer blade life.
Oversized pedestal base to reduce vibration.
Head rotates 45° right and 60° left of center for easy miter cutting.
Bronze worm gear with tapered roller bearing support.
Removable hardened, serrated vise jaw faces.
STANDARD EQUIPMENT
Blade
Adjustable positive stop
Instruction and service manual
Gallon of coolant
Tool kit for changing blades
Saw blade selector calculator
SPECIFICATIONS
Maximum blade diameter ............................ 14
Motor horsepower .................................. 3.5
Voltage ........................................... 220/440
Phase ............................................. 3
Speeds ............................................ 20-105
Weight ............................................ 890
Solid round 90˚ capacity (inches) ................. 3-3/8
Solid round 45˚ capacity (inches) ................. 3
Tube 90˚ capacity (inches) ........................ 4-3/4
Tube 45˚ capacity (inches) ........................ 4
Square 90˚ capacity (inches) ...................... 4-1/8
Square 45˚ capacity (inches) ...................... 3-3/8
Rectangle 90˚ capacity (inches) ................... 6-1/4 x 3-1/2
Rectangle 45˚ capacity (inches) ................... 3-3/8 x 2-3/4
