13 1/2" x 24" cc,
Location:
Salt Lake City, UT
Manufacturer:
Monarch lathes
Spindle Bore:
1 ½”
Spindle Nose:
D-1-3 CAMLOCK

Specifications

Condition:
used
Stock number:
8075
Feeds:
50 Changes.50 to 16.1 IPM
Threads:
60 Changes 3 to 184 TPI
Division:
Metalworking
Main motor:
2HP
Electricals:
220/440 Volt
Inventory no:
8-075
Spindle bore:
1 ½”
Spindle nose:
D-1-3 CAMLOCK
Width of bed:
10 ¼”
Approx. weight:
2,100 Lbs.
Spindle speeds:
Variable Speed Changes 0 to 2250 RPM
Swing over bed:
13 ½”
Tailstock taper:
#2MT
Swing over slide:
7 ¼”
Approx. dimensions:
67”L x 36”W x 48”H
Max center distance:
24”
Subcategory:
Lathes, engine

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

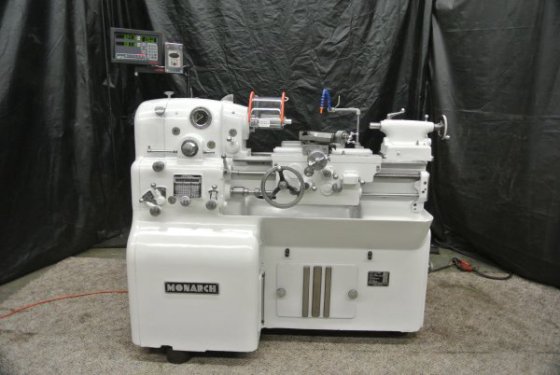

Pre-Owned Monarch EE Lathe
Model:EE 12”x24”Serial No: 32453
General specifications are approximate and are subject to verification.
Swing over bed:13 ½”
Swing over slide:7 ¼”
Max center distance:24”
Spindle nose:D-1-3 CAMLOCK
Spindle bore:1 ½”
Spindle speeds: Variable Speed Changes 0 to 2250 RPM
Width of bed: 10 ¼”
Tailstock Taper:#2MT
Threads: 60 Changes 3 to 184 TPI
Feeds:50 Changes.50 to 16.1 IPM
Main motor:2HP
Electricals:220/440 Volt
Approx. Weight:2,100 Lbs.
Approx. Dimensions:67”L x 36”W x 48”H
Complete with:
•Taper Attachment w/ Bed Clamp
•Frequency Inverter Drive
•Newall Lathe DRO Unit, 2 Axis DP700
•FlexBar Lathe Guard- Lexan Type
•Hardened Ways
•Chip Pan
•Coolant Pump & Tank Unit
Condition: Amazing Condition. Runs Smooth & Quiet, Must See to Believe! Truly a Rare Specimen of American Workmanship.
Inventory No: 8-075
