1980 8" Width 24" Length
Location:
Harrison, NJ
Weight:
4,800 LBS.

Specifications

Condition:
used
Year:
1980
Serial number:
2F-803211
Stock number:
153194
In increments of:
0.0002” TO .004”
Cross feed travel:
9"
Grinding wheel size:
12" x 1"W x 3”B
Power elevation rate:
15" IPM
Hydraulic table speed:
5' TO 75' FPM
Width & length ground:
8" X 24"
Approx. machine weight:
4,800 LBS.
Vertical handwheel grad:
0.0005"
Auto cross feed increment:
0.10" TO 3/8"
Longitudinal table travel:
29"
Cross feed hand wheel grad:
0.001"
Wheelhead cross truing rate:
6” IPM
Vertical capacity w/new wheel:
12"

Description

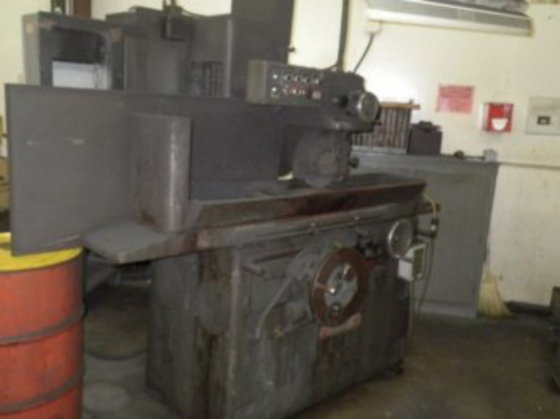

8" X 24" THOMPSON "HEAVY DUTY" PRECISION
HYDRAULIC SURFACE GRINDER
WITH AUTOMATIC INCREMENTAL DOWNFEED
MODEL: #2F S/N: 2F-803211 NEW: 1981
WIDTH & LENGTH GROUND ................ 8" X 24"
VERTICAL CAPACITY W/NEW WHEEL ........ 12"
GRINDING WHEEL SIZE .................. 12" x 1"W x 3”B
LONGITUDINAL TABLE TRAVEL ............ 29"
HYDRAULIC TABLE SPEED ................ 5' TO 75' FPM
CROSS FEED TRAVEL .................... 9"
AUTO CROSS FEED INCREMENT ............ 0.10" TO 3/8"
WHEELHEAD CROSSFEED RAPID TRAVERSE ... 20' FPM
WHEELHEAD CROSS TRUING RATE .......... 6” IPM
CROSS FEED HAND WHEEL GRAD. .......... 0.001"
VERTICAL HANDWHEEL GRAD. ............. 0.0005"
POWER ELEVATION RATE ................. 15" IPM
AUTOMATIC INCREMENTAL DOWNFFED,
IN INCREMENTS OF .................... 0.0002” TO .004”
APPROX. MACHINE WEIGHT ................. 4,800 LBS.
FLOOR SPACE REQUIRMENT FOR OPERATION ... 113"L x 41"W
x 85"H
EQUIPPED WITH:
LATER MODEL THOMPSON, SQUARE FRAME, HEAVY CAST IRON MACHINE
AUTOMATIC INCREMENTAL DOWNFEED OF THE GRINDING WHEEL
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
12"D x 1"W WHEEL
HYDRAULIC LONGITUDINAL & CROSS FEEDS
DRESSER MOUNTED ON THE SIDE OF THE WHEEL
8" X 24" O.S. WALKER FINER DIVISION ELECTRO-MAGNETIC CHUCK
“ELECTRO-MATIC” “NEUTROFIER III” LATE MODEL NEUTROFIER CONTROL
FEATURING VARIABLE POWER INTENSITY
COOLANT SYSTEM
AUTO LUBRICATION
EXTERNAL HYDRAULIC TANK & PUMP
5 H.P./3/60/220-440 VOLT SPINDLE MOTOR
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
