Millport 1660, Blue Rhino, NEW

Millport 1660, Blue Rhino, only in an open house, 16x60, X40", Y13.5", Z22.5" quill5", 30NST in Salt Lake City, UT

Location:
Salt Lake City, UT
Manufacturer:
Rhino

Specifications

Condition:
used
Stock number:
5692
Division:
Metalworking
Quill travel:
Spindle motor:
3 HP, 3Ph, 208/230V
Spindle taper:
#30 NST w/Erickson QC
X axis travel:
40”
Y axis travel:
13.5”
Z axis travel:
22.5”
Dc feed speeds:
0 – 21 IPM
Machine weight:
5800 lbs
Auto quill feeds:
0.002, 0.004, 0.006
Head swivel angle:
L to R 90 Degree
Table working surface:
16” x 60”
Spindle center to table:
34”
Variable spindle speeds:
70 – 4200 RPM

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

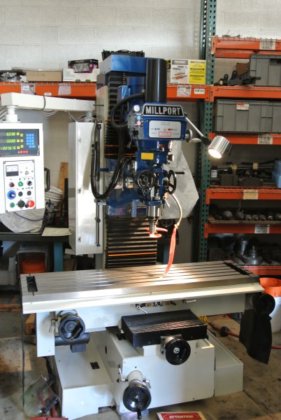

NEW Millport Blue Rhino 1660 DRO Machining Center
Serial No 020036
General specifications are approximate and are subject to verification.
Table Working Surface:16” x 60”
X Axis Travel:40”
Y Axis Travel:13.5”
Z Axis Travel:22.5”
Quill Travel:5”
Auto Quill Feeds:0.002, 0.004, 0.006
Spindle Center to Table:34”
Variable Spindle Speeds:70 – 4200 RPM
DC Feed Speeds:0 – 21 IPM
Machine Weight:5800 lbs
Spindle Taper:#30 NST w/Erickson QC
Spindle Motor:3 HP, 3Ph, 208/230V
Head Swivel Angle:L to R 90 Degree
Complete with:
•Easson 3 Axis DRO with Screen (on pendant swing arm style unit w/ knobs and buttons easily referenced)
•Power Drawbar Unit (requires air line to it 90-110 PSI)
•5HP Spindle Motor, #30 NST Spindle Taper
•With Class 7 Bearings, standard
•X and Z DC Servo Motors, Installed, Hardened and Ground with Turcite-B Coating Guide Way
•Double nut precision ball screws hardened and ground for high accuracy and long lasting
•FC30 Meehanite Casting Main Frame with annealed and stress relieved for long term reliability
•100%aser tested for positioning accuracy and repeatability
•Box ways design on Y axis to provide maximum rigidity and stability
•Neoprene & Accordion style way cover on 3 axis
•Tool box & Tools
•Coolant System and Air Blast System
•Leveling Bolts and Plate
•Auto Lube System
•One Shot Lube for Oiling System
•Halogen Work Light
Inventory # 5692
