Location:
Hampshire, IL
Model:

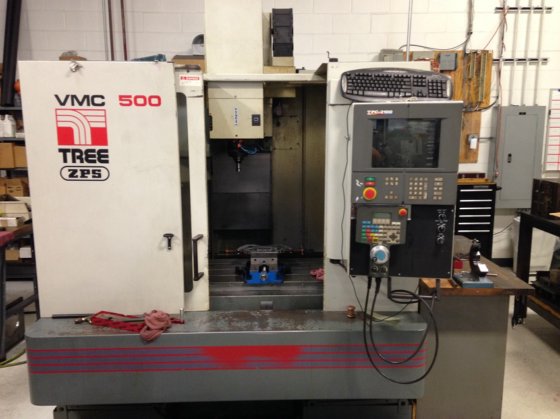

VMC 500
Spindle Taper:
CAT 40

Specifications

Condition:
used
Year:
1996
Stock number:
2020
Atc:
20 Pos Umbrella
Table size:
31" x 20"
Main spindle:
15 HP
Spindle speed:
8,000 RPM
Spindle taper:
CAT 40
Condition info:
As Is, Where Is
Cutting feedrate:
30 - 590 IPM
Coolant tank capacity:
75 Gallon
Guideway construction:
Linear
Approx. machine weight:
7,920 Lbs
Rapid traverse (x, y, z):
984 IPM
Machine travels (x, y, z):
20" x 20" x 20"
Approx. machine dimensions:
93" x 89" x 94"
Spindle center to column distance:
20.25"

Description

Equipped With:
* Vickers PC-2100 Windows Based Control * Gibbs Level 0 * Rigid Tapping * Remote Hand Pendant * 20 Tool ATC * Yasakawa Drives * All Available Manuals
