Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors
Model:
RA-500

Specifications

Condition:
used
Serial number:
E1820577
Stock number:
46576001
Bottom:
Dished Bottom
In psi:
100
Gallons:
500
Mounted:
Mounted on 4 Legs
Opening:
top (2) 3", (2) 4", 8", 30" great cover with (2) 3", 4", and a 16" x 12" oval man way with a 4" sight glass in the cover
Diameter:
48"
Jacket psi:
90
Year built:
1983
Outlet size:
3"
Straight side:
48"
Top head style:
Dished Head
Internal pressure:
100 psi/FV
Pressure - jacket:
90
National board no.:
42207
Internal temperature:
572 degrees F
Temperature - jacket:
572 degrees F
Horizontal or vertical:
Vertical
Material of construction:
Glass Lined

Description

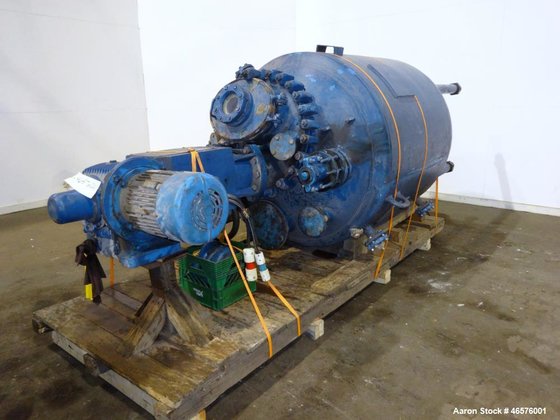

46576001 Used- Pfaudler Closed Top Glass Lined Reactor, 500 Gallon, Vertical. White glass with calibration lines. Approximately 48" diameter x 48" straight side, dished top and bottom. Internal rated Full Vacuum & 100 psi at 572 degrees F. Carbon steel jacket rated 90 psi at 572 degrees F. (1) H baffle, (1) 3 blade retreat curve agitator, driven by a Pfaudler size 4 drive, model FMDWV50400EJD, serial# 83020958-4.000 with lubricator. Driven by a 5/2.5hp, 3/60/575 volt, 1750/860 rpm XP motor with reducer, O.A. ratio 15 to 1. Openings top (2) 3", (2) 4", 8", 30" great cover with (2) 3", 4", and a 16" x 12" oval man way with a 4" sight glass in the cover. Approximate 3" center bottom outlet. Mounts on (4) pipe legs. Serial# E182-0577, National Board 42207, built 1983. Certified by Ceramic Coatings, serial# 4-26545, 1985.
