Top Seller
1.25" Width 9" Stroke Morrison
Location:
Harrison, NJ
Price:
$18,550 USD
Manufacturer:
Morrison
Model:
1-1/4"
Weight:
1150 LBS.

Specifications

Condition:
new
Stock number:
122989
Age info:
NEW
Table size:
24" x 27"
Cuts keyways:
1/16" to 1-1/4"
Strokes per min:
34
Length of stroke:
3", 4-1/2", 6", 7-1/2" & 9"
Number of feeds-3:
002", .004", .006"
Floor space required:
32" x 36"
Maximum length of cut:
9"
Distance between clamps:
25-1/2"
Largest dia. cutter bar:
1-1/4"
Table height from floor:
36"
Domestic shipping weight:
1150 LBS.
Dimensions, boxed for export:
36"x48"x54"
Gross weight, boxed for export:
1400 LBS.
Motor drive-geared motor 100 rpm:
2 HP
Distance from 1" cutter to column:
16-1/4"
Max distance under standard clamps:
14"
Subcategory:
New keyseaters
Subcategory 2:
Broaches & keyseaters

Description

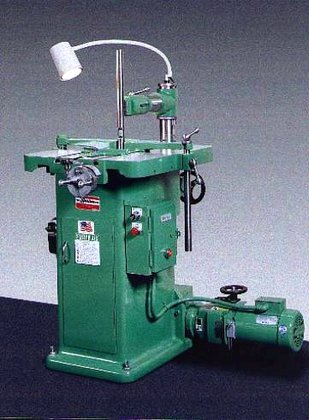

MORRISON 1-1/4-INCH KEYSEATER
SPECIFICATIONS:
CUTS KEYWAYS................................ 1/16" to 1-1/4"
MAXIMUM LENGTH OF CUT.................................... 9"
LENGTH OF STROKE................ 3", 4-1/2", 6", 7-1/2" & 9"
STROKES PER MIN......................................... 34
NUMBER OF FEEDS-3....................... .002", .004", .006"
LARGEST DIA. CUTTER BAR.............................. 1-1/4"
DISTANCE FROM 1" CUTTER TO COLUMN................... 16-1/4"
MAX DISTANCE UNDER STANDARD CLAMPS...................... 14"
DISTANCE BETWEEN CLAMPS............................. 25-1/2"
TABLE SIZE........................................ 24" x 27"
TABLE HEIGHT FROM FLOOR................................. 36"
FLOOR SPACE REQUIRED.............................. 32" x 36"
MOTOR DRIVE-GEARED MOTOR 100 RPM...................... 2 HP
DOMESTIC SHIPPING WEIGHT.......................... 1150 LBS.
GROSS WEIGHT, BOXED FOR EXPORT.................... 1400 LBS.
DIMENSIONS, BOXED FOR EXPORT.................... 36"x48"x54"
STANDARD EQUIPMENT INCLUDES:
2 H.P., 60 Hertz, 220 or 440 volt motor, magnetic switch
with over and under voltage protection, start, stop and jog
110 volt pushbutton station, one shot lubrication,
centering vee, swinging clamp bar, cutter bar support,
automatic table feed and stop with two teeslots "4" from
center.
Options:
Heavy Duty Option - Variable Speed Drive Unit (add $2,095)
