Top Seller
0.1046" Cap. 52" Width National
Location:
Harrison, NJ
Price:
$9,782 USD
Manufacturer:
National
Model:
NH5212 12 Ga x 52" Hydraulic Shear
Capacity:
Mild Steel 12 Gauge
Weight:
1600 lbs.

Specifications

Condition:
new
Stock number:
123361
Motor:
3 hp 208 volt
Models:
NBG36
Model 2:
NH5212 **MADE IN THE USA**
Model 3:
NSA52
Age info:
NEW
Capacity:
Mild Steel 12 Gauge
Cutting length:
52"
Shipping weight:
1600 lbs.
Strokes per minute:
Approx. 25
Floor space w/gauges:
61"x75 7/8" x 42 1/4"
Floor space w/o gauges:
61"x22 3/4" x 42 1/4"
Oil reservoir capacity:
26 GAL
Subcategory:
Shears
Subcategory 2:
New shears

Description

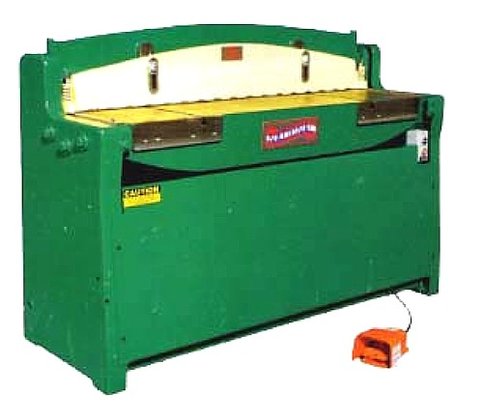

NEW NATIONAL 52" x 12ga HYDRAULIC SHEAR
MODEL: NH5212 **MADE IN THE USA**
SPECIFICATIONS:
CAPACITY.............................. Mild Steel 12 Gauge
2.7mm
Stainless 16 Gauge
1.6mm
STROKES PER MINUTE.................... Approx. 25
CUTTING LENGTH........................ 52"
SHIPPING WEIGHT....................... 1600 lbs.
FLOOR SPACE W/GAUGES.................. 61"x75 7/8" x 42 1/4"
FLOOR SPACE W/O GAUGES................ 61"x22 3/4" x 42 1/4"
OIL RESERVOIR CAPACITY................ 26 GAL
MOTOR................................. 3 hp 208 volt
1800 r.p.m. 240 volt
3 phase 460 volt
OPTIONAL ACCESSORIES:
Front Operated Digital Back Gauge
Models: NBG36
NBG52
Squaring Arm
Model: NSA52
NATIONAL heavy duty power shears are equipped with a fully
integrated hydraulic unit. Complete with electrical
hydraulic valve, pilot operated-pressure relief valve,
heavy duty foot switch that allows this unit to return to
the top of the stroke when the operator removes his foot
from the foot switch. Heavy duty duble acting cylinders.
Fully enclosed control panel.
The NATIONAL shear is actuatd by a portable shrouded
electric foot switch attached to a long flexible cable so
it may be positioned comfortable to the operator.
Extra heavy cast iron body with solid 4-edge high carbon
high chromium blades. Quick adjusting back gauge for
direct reading with a positive lock. Standard with table
gauges and front arm extensions.
