100 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$14,950 USD
Manufacturer:
Pressmaster
Model:
HFP-100
Capacity:
100
Stroke:
12"

Specifications

Condition:
new
Stock number:
134265
Bore:
8"
Return:
26 IPM
Stroke:
12"
Weight:
2,400 LBS.
41 amps:
$ 900
Age info:
NEW
- v-blocks:
$ 600
- foot pedal:
$3,600
- safety guard:
$1,000
Ram speed press:
20 IPM
Shipping dimensions:
50" X 62" X 90"
Rated capacity, tonnage:
100
- 18 inch stroke cylinder:
$1,500
- 24 inch stroke cylinder:
$2,200
Maximum distance from bed to ram:
33"

Description

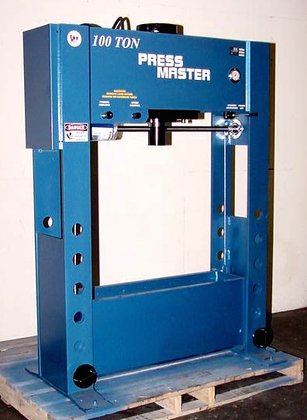

100 TON PRESSMASTER H-FRAME HYD. PRESS
MODEL HFP-100
NEW - IN STOCK FOR IMMEDIATE DELIVERY
RATED CAPACITY, TONNAGE........................... 100
STROKE............................................ 12"
BORE.............................................. 8"
RAM SPEED PRESS .................................. 20 IPM
RETURN ..................... 26 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 13"
MAXIMUM DISTANCE FROM BED TO RAM ................. 33"
WEIGHT ........................................... 2,400 LBS.
SHIPPING DIMENSIONS .............................. 50" X 62" X 90"
STANDARD FEATURES:
-CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND
LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING
THE OPERATOR TO USE THE PROPER SPEED FOR THE TASK.
-PRESSURE REGULATOR - LIMITS RAM PRESSURE
-DOUBLE ACTING CYLINDER - PERMITS PULLING AND PRESSING
-HYDRAULIC POWER LIFT TABLE
-SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
-ELECTRIC/HYDRAULIC OPERATION
-HEAVY DUTY STEEL STRUCTURE
-OPEN SIDES TO FACILITATE WORK ON LONG PIECES
-FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
-LOW SPEED PUMP
-LOW SPEED
BALDOR 10 HP, 3 PHASE MOTOR
, STANDARD VOLTAGES AVAILABLE
-HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR
-LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES
FOR HIGHER EFFICIENCY AND SAFER OPERATION
FULL ONE YEAR WARRANTY.
NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.
OPTIONS:
- FOOT PEDAL ................................... $3,600
- ADJUSTABLE STROKE CONTROL w/FOOT PEDAL ....... $4,000
- V-BLOCKS ..................................... $ 600
- SAFETY GUARD ................................. $1,000
- 18 INCH STROKE CYLINDER ...................... $1,500
- 24 INCH STROKE CYLINDER ...................... $2,200
- 10 HP 230 VOLTS
1 PHASE
41 AMPS .............. $ 900
