Top Seller
20 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$26,500 USD
Manufacturer:
Pressmaster
Model:
CFP-20
Stroke:
12"

Specifications

Condition:
new
Stock number:
134673
Width:
26"
Throat:
11"
Weight:
4,000#
Age info:
NEW
Daylight:
18"
Clearance:
6"
Press speed:
44 IPM
Return speed:
269 IPM
Front to back:
46"
Approach speed:
186 IPM
Floor to table:
36"
U-slot opening:
4"
Height (overall):
87"
Voltage available:
230/ 460/ 575/ 3 PH. 60 HZ
Motor hp @ 1750 rpm:
5 HP
Shipping dimensions:
54"L x 50"W x 94"H
Max. stroke adjustable:
12"

Description

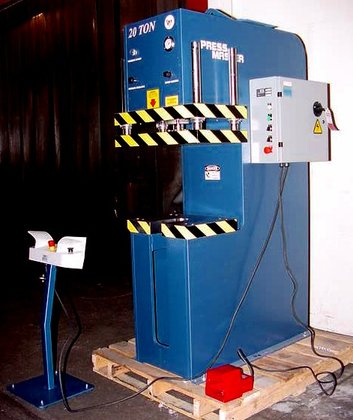

20 TON PRESSMASTER C-FRAME HYDRAULIC PRESS
MODEL CFP-20 BRAND NEW - STILL IN CRATE
TONS OF FORCE ......(MAX).................... 20 TONS
APPROACH SPEED .............................. 186 IPM
PRESS SPEED ................................. 44 IPM
RETURN SPEED ................................ 269 IPM
TABLE ..............(LR X FB)................ 21" X 16"
DAYLIGHT .................................... 18"
MAX. STROKE ADJUSTABLE ...................... 12"
THROAT ...................................... 11"
U-SLOT OPENING .............................. 4"
FLOOR TO TABLE .............................. 36"
FRONT TO BACK................................ 46"
HEIGHT (OVERALL)............................. 87"
CLEARANCE ................................... 6"
WIDTH ....................................... 26"
UPPER PLATEN .......(LR X FB)................ 21" X 16"
MOTOR HP @ 1750 RPM ......................... 5 HP
VOLTAGE AVAILABLE: 230/ 460/ 575/ 3 PH. 60 HZ
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL CONTROL-YOUR CHOICE OF USING:
(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EXTRA EMERGENCY STOP
OR (2) FOOT PEDAL
- P.L.C. PROGRAMMABLE CONTROL SYSTEM
- QUALITY BALDOR MOTOR, LOW SPEED
- AIR-COOLED INDUSTRIAL OIL COOLER
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE
THROUGHOUT NORTH AMERICA
WEIGHT ...................................... 4,000#
SHIPPING DIMENSIONS ......................... 54"L x 50"W x 94"H
