45 Ton 4.25" Throat Scotchman
Location:
Harrison, NJ
Price:
$6,390 USD
Manufacturer:
Scotchman
Model:
Porta Fab 45 *Made in the USA*
Capacity:
45 ton (41 mt)
Weight:
724 lbs. (328 kg)

Specifications

Condition:
new
Stock number:
136585
Brake 8:
25 ton (23 mt)
Model 2:
PORTA FAB 45
Age info:
NEW
Brake 12:
20 ton (18 mt)
Optional:
2 hp 1 ph (1.49 kW) 220v
Standard:
2 hp 1 ph (1.49 kW) 110v
45 degrees:
2" x 2" x 1/4" (50 x 50 x 6 mm)
90 degrees:
3" x 3" x 5/16" (75 x 75 x 8 mm)
Dimensions:
35.75" L x 17.63" W x 38.75" H
Hydraulics:
2,500 psi (172 bar)
Picket tool:
1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (20 mm, 25 mm)
Throat depth:
4-1/4" (108 mm)
Flat bar shear:
6" length (150 mm)
Open end brake:
Max. 1/4" x 3" (6 x 76 mm) flat or angle iron
Round rod shear:
3/4" (20 mm)
Shipping weight:
724 lbs. (328 kg)
Special tooling:
2-1/4" max. dia. (57 mm max. dia.)
Round rod (max.):
1/4" to 1" (6 mm to 25 mm)
In heavy material:
6 spm (3/4" stroke) [punch station]
In light material:
20 spm (1/4" stroke) [punch station]
Punching capacity:
45 ton (41 mt)
Rectangle notcher:
2" x 1-3/4" x 1/4" (50 x 45 x 6 mm)
Square rod (max.):
1/4" to 3/4" (6 mm to 18 mm)
Square tube shear:
1/2" to 1", 12 gauge (12 to 25 mm, 2.75 mm)
Bar shear capacity:
3/8" x 6"
Rod shear capacity:
3/4" round
90 degree v-notcher:
6" x 6" x 1/8" (150 x 150 x 3 mm)
Angle shear capacity:
3" x 3" x 5/16" @ 90 degrees and 2" x 2" x 1/4" @ 45 degrees
One round punch & die:
max. diameter 1"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

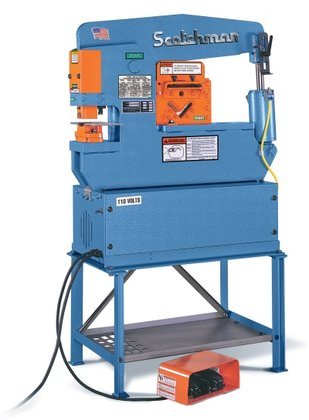

NEW SCOTCHMAN 45 TON IRONWORKER
MODEL: PORTA FAB 45
*MADE IN THE USA*
STANDARD FEATURES:
45-ton punch station (1-1/8" in 1/2")
Keyed punch ram for safety
4-1/4" throat depth
2" die holder
Punch nut with wrench and stripper
One round punch & die: max. diameter 1"
Adjustable electric stroke control with scale
Three-in-one combination tool
Angle shear capacity: 3" x 3" x 5/16" @ 90 degrees and 2" x 2" x 1/4" @ 45 degrees
Bar shear capacity: 3/8" x 6"
Rod shear capacity: 3/4" round
Tool table work area
Machine stand with punch & die tooling storage rack
110 volt/1-ph electrics
All guards necessary to comply with ANSI B 11-5 standards
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 45 ton (41 mt)
.................................. 1-1/8" in 1/2" (28 mm in 12 mm)
Special tooling .................................... 2-1/4" max. dia. (57 mm max. dia.)
Throat depth ....................................... 4-1/4" (108 mm)
Flat bar shear ..................................... 6" length (150 mm)
..................................... 1/2" x 4" (12 x 100 mm)
..................................... 3/8" x 6" (10 x 150 mm)
Angle shear
90 degrees ........................................ 3" x 3" x 5/16" (75 x 75 x 8 mm)
45 degrees ........................................ 2" x 2" x 1/4" (50 x 50 x 6 mm)
Round rod shear .................................... 3/4" (20 mm)
Brake 8" ........................................... 25 ton (23 mt)
Brake 12" .......................................... 20 ton (18 mt)
Open end brake ..................................... Max. 1/4" x 3" (6 x 76 mm) flat or angle iron
Pipe notcher ....................................... 3/4", 1" (20 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
Rectangle notcher .................................. 2" x 1-3/4" x 1/4" (50 x 45 x 6 mm)
90 degree V-notcher ................................ 6" x 6" x 1/8" (150 x 150 x 3 mm)
Rod shear
Round rod (max.) .................................. 1/4" to 1" (6 mm to 25 mm)
.................................. 5 cavity: 7/16" (11 mm), 9/16" (14 mm), 5/8" (16 mm),
3/4" (19 mm), 1" (25 mm)
Square rod (max.) ................................. 1/4" to 3/4" (6 mm to 18 mm)
................................. 1 cavity: 3/4" (18 mm)
Strut shear ........................................ samples required
Square tube shear .................................. 1/2" to 1", 12 gauge (12 to 25 mm, 2.75 mm)
Picket tool ........................................ 1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
........................................ 16 gauge (1.6 mm)
Strokes per minute
In light material ................................. 20 spm (1/4" stroke) [punch station]
In heavy material ................................. 6 spm (3/4" stroke) [punch station]
Hydraulics ......................................... 2
