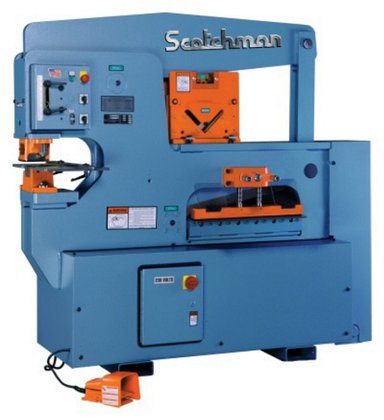

90 Ton 12" Throat Scotchman
Location:
Harrison, NJ
Price:
$21,190 USD
Manufacturer:
Scotchman
Model:
9012-24M *Made in the USA*
Capacity:
90 ton (80 mt)
Weight:
4,204 lbs. (1,906 kg)

Specifications

Condition:
new
Stock number:
136588
Model 2:
9012-24M
Age info:
NEW
Brake 12:
50 ton (45 mt)
Brake 24:
40 ton (36 mt)
Optional:
5 hp 1 ph (3.73 kW) 230v
Standard:
5 hp 3 ph (3.73 kW) 230/240/208/380/575v
45 degrees:
3" x 3" x 3/8" (75 x 75 x 10 mm)
90 degrees:
6" x 6" x 1/2" (150 x 150 x 12 mm)
Dimensions:
76" L x 26" W x 70" H
Hydraulics:
2,600 psi (183 bar)
Picket tool:
1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (20 mm, 25 mm)
Throat depth:
12" (300 mm)
(w/bar shear):
4" x 4" x 1/2" (100 x 100 x 12 mm)
Channel shear:
2" to 6" adj. (50 mm to 150 mm adj.)
Flat bar shear:
24" length (600 mm)
Open end brake:
Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Shipping weight:
4,204 lbs. (1,906 kg)
Special tooling:
4" max. dia. (100 mm max. dia.)
Opt. sabre blade:
1/2" x 22" (12 x 550 mm)
Round rod (max.):
1/4" to 1-1/4", 9 cavity (6 mm to 32 mm)
In heavy material:
19 spm (3/4" stroke) [punch station]
In light material:
56 spm (1/4" stroke) [punch station]
Offset die holder:
Max. 40 ton (36 mt)
Punching capacity:
90 ton (80 mt)
Rectangle notcher:
2" x 2-1/2" x 3/8" (50 x 65 x 10 mm)
Square rod (max.):
1/4" to 1", 1 cavity (6 mm to 25 mm)
Square tube shear:
1/2" to 2", 12 gauge (12 to 50 mm, 2.75 mm)
90 degree v-notcher:
6" x 6" x 5/16" (150 x 150 x 8 mm)
One round punch & die:
max. diameter 1-1/4"
Angle shear capacity @ 90 degrees:
6" x 6" x 1/2"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW SCOTCHMAN 90 TON IRONWORKER
MODEL: 9012-24M
*MADE IN THE USA*
STANDARD FEATURES:
90-ton punch station (1-1/8" in 1")
Keyed punch ram for safety
12" throat depth
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench and stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear capacity @ 90 degrees: 6" x 6" x 1/2"
24" flat bar shear with 4-way reversible blade
Shear table with miter fence
Tool table work area
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt/3-ph electrics (must specify voltage)
All guards necessary to comply with ANSI B 11-5 standards
Forklift accommodations
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 90 ton (80 mt)
.................................. 1-1/8" in 1" (27 mm in 25 mm)
Special tooling .................................... 4" max. dia. (100 mm max. dia.)
Throat depth ....................................... 12" (300 mm)
Flat bar shear ..................................... 24" length (600 mm)
..................................... 1" x 8" (25 x 200 mm)
..................................... 3/4" x 12" (18 x 300 mm)
..................................... 1/2" x 16" (12 x 400 mm)
..................................... 1/4" x 24" (6 x 600 mm)
Opt. Sabre blade ................................... 1/2" x 22" (12 x 550 mm)
................................... 3/8" x 24" (10 x 600 mm)
Angle shear
90 degrees ........................................ 6" x 6" x 1/2" (150 x 150 x 12 mm)
45 degrees ........................................ 3" x 3" x 3/8" (75 x 75 x 10 mm)
(w/Bar shear) ..................................... 4" x 4" x 1/2" (100 x 100 x 12 mm)
Brake 12" .......................................... 50 ton (45 mt)
Brake 24" .......................................... 40 ton (36 mt)
Open end brake ..................................... Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Pipe notcher ....................................... 3/4", 1" (20 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
Rectangle notcher .................................. 2" x 2-1/2" x 3/8" (50 x 65 x 10 mm)
90 degree V-notcher ................................ 6" x 6" x 5/16" (150 x 150 x 8 mm)
Channel shear ...................................... 2" to 6" adj. (50 mm to 150 mm adj.)
Strut shear ........................................ samples required
Rod shear
Round rod (max.) .................................. 1/4" to 1-1/4", 9 cavity (6 mm to 32 mm)
Square rod (max.) ................................. 1/4" to 1", 1 cavity (6 mm to 25 mm)
Square tube shear .................................. 1/2" to 2", 12 gauge (12 to 50 mm, 2.75 mm)
Picket
