Top Seller

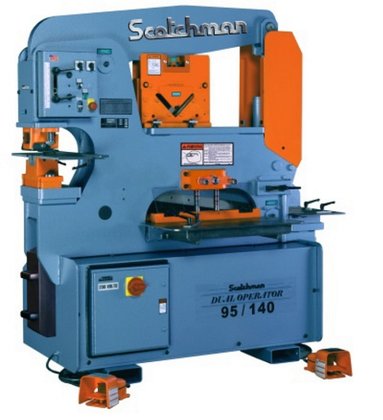

95 Ton 9" Throat Scotchman
Location:
Harrison, NJ
Price:
$26,390 USD
Manufacturer:
Scotchman
Model:
DO 95/140-24M *Made in the USA*
Capacity:
95 ton (86 mt)
Weight:
3,800 lbs. (1,723 kg)

Specifications

Condition:
new
Stock number:
136595
Model 2:
DO 95/140-24M
V-notch:
3" x 3" x 3/8" (75 x 75 x 10 mm)
Age info:
NEW
Brake 12:
80 ton (72.5 mt)
Brake 24:
55 ton (50 mt)
Optional:
10 hp 1 ph (7.46 kW) 230v
Standard:
10 hp 3 ph (7.46 kW) 230/460/208/380/575v
45 degrees:
3" x 3" x 3/8" (75 x 75 x 10 mm)
90 degrees:
6" x 6" x 1/2" (150 x 150 x 12 mm)
Dimensions:
65" L x 30" W x 72-1/8" H
Hydraulics:
3,500/3,500 psi (241/241 bar)
Picket tool:
1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (19 mm, 25 mm)
Throat depth:
9" (225 mm)
(w/bar shear):
4" x 4" x 1/2" (100 x 100 x 12 mm)
Channel shear:
2" to 6" adj. (50 mm to 150 mm adj.)
Flat bar shear:
140 ton, 24" length (127 mt, 609 mm)
Open end brake:
Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Shipping weight:
3,800 lbs. (1,723 kg)
Special tooling:
4" max. dia. (100 mm through 5.5 mm)
Round rod (max.):
1/4" to 1-1/4", 9 cavity (6 mm to 32 mm)
In heavy material:
16 spm (3/4" stroke) [punch station]
In light material:
47 spm (1/4" stroke) [punch station]
Offset die holder:
Max. 40 ton (36 mt)
Punching capacity:
95 ton (86 mt)
Rectangle notcher:
3" x 5" x 3/8" (75 x 125 x 10 mm)
Square rod (max.):
1/4" to 1", 1 cavity (6 mm to 25 mm)
Square tube shear:
1/2" to 2", 12 gauge (2.75 mm)
(sabre blade-std.):
1" x 8", 3/4" x 12" (25 x 203 mm, 18 x 304 mm)
90 degree v-notcher:
6" x 6" x 5/16" (150 x 150 x 8 mm)
One round punch & die:
max. diameter 1-1/4"
Notching in leg of channel:
6" to 10" (150 mm to 250 mm)
Angle shear capacity @ 90 degrees:
6" x 6" x 1/2"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW SCOTCHMAN 95 TON IRONWORKER
MODEL: DO 95/140-24M
*MADE IN THE USA*
STANDARD FEATURES:
Dual operator allows for two operators to work at the same time at full capacity
95-ton punch station (1-3/16" in 1")
Keyed punch ram for safety
9" throat depth
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench and stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Two 2-stage hydraulic pumps
Two valves
Angle shear capacity @ 90 degrees: 6" x 6" x 1/2"
Rectangle notcher 3" x 4" x 1/2"
Notcher table with guides
140-ton, 24" flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt/3-ph electrics (must specify voltage)
All guards necessary to comply with ANSI B 11-5 standards
Forklift accommodations
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 95 ton (86 mt)
.................................. 1-3/16" in 1" (27 mm in 25 mm)
Special tooling .................................... 4" max. dia. (100 mm through 5.5 mm)
Throat depth ....................................... 9" (225 mm)
Flat bar shear ................................. 140 ton, 24" length (127 mt, 609 mm)
(sabre blade-std.) ................................. 1" x 8", 3/4" x 12" (25 x 203 mm, 18 x 304 mm)
................................. 1/2" x 16", 3/8" x 24" (12 x 406 mm, 10 x 609 mm)
Angle shear
90 degrees ........................................ 6" x 6" x 1/2" (150 x 150 x 12 mm)
45 degrees ........................................ 3" x 3" x 3/8" (75 x 75 x 10 mm)
(w/Bar shear) ..................................... 4" x 4" x 1/2" (100 x 100 x 12 mm)
Brake 12" .......................................... 80 ton (72.5 mt)
Brake 24" .......................................... 55 ton (50 mt)
Open end brake ..................................... Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Pipe notcher ....................................... 3/4", 1" (19 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
90 degree V-notcher ................................ 6" x 6" x 5/16" (150 x 150 x 8 mm)
Rectangle notcher .................................. 3" x 5" x 3/8" (75 x 125 x 10 mm)
.................................. 3" x 4" x 1/2" (75 x 100 x 12 mm)
V-notch ............................................ 3" x 3" x 3/8" (75 x 75 x 10 mm)
Notching in leg of channel ......................... 6" to 10" (150 mm to 250 mm)
Channel shear ...................................... 2" to 6" adj. (50 mm to 150 mm adj.)
Strut shear ........................................ samples required
Rod shear
Round rod (max.) ..
