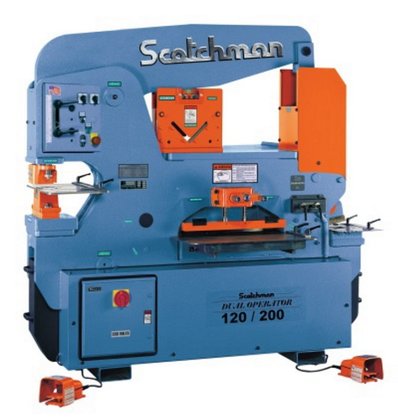

120 Ton 12" Throat Scotchman
Location:
Harrison, NJ
Price:
$32,890 USD
Manufacturer:
Scotchman
Model:
DO 120/200-24M *Made in the USA*
Capacity:
120 ton (108 mt)
Weight:
6,204 lbs. (2,814 kg)

Specifications

Condition:
new
Stock number:
136596
Model 2:
DO 120/200-24M
V-notch:
3" x 3" x 1/2" (75 x 75 x 12 mm)
Age info:
NEW
Brake 12:
75 ton (55 mt)
Brake 24:
55 ton (40 mt)
Optional:
10 hp 1 ph (7.46 kW) 230v
Standard:
10 hp 3 ph (7.46 kW) 230/460/208/380/575v
45 degrees:
3" x 3" x 3/8" (75 x 75 x 10 mm)
90 degrees:
6" x 6" x 1/2" (150 x 150 x 12 mm)
Dimensions:
77-1/4" L x 34" W x 74-1/4" H
Hydraulics:
3,500/3,500 psi (207/207 bar)
Picket tool:
1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (19 mm, 25 mm)
Throat depth:
12" (300 mm)
(w/bar shear):
4" x 4" x 1/2" (100 x 100 x 12 mm)
Channel shear:
2" to 6" adj. (50 mm to 150 mm)
Flat bar shear:
200 ton, 24" length (600 mm)
Open end brake:
Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Shipping weight:
6,204 lbs. (2,814 kg)
Special tooling:
4" max. dia. (100 mm max. dia.)
Round rod (max.):
1/4" to 1-1/4", 9 cavity (6 mm to 32 mm)
In heavy material:
16 spm (3/4" stroke) [punch station]
In light material:
47 spm (1/4" stroke) [punch station]
Offset die holder:
Max. 40 ton (36 mt)
Punching capacity:
120 ton (108 mt)
Rectangle notcher:
3" x 5-3/4" x 1/2" (75 x 145 x 12 mm)
Square rod (max.):
1/4" to 1", 1 cavity (6 mm to 25 mm)
Square tube shear:
1/2" to 2", 12 gauge (12 mm to 50 mm, 2.75 mm)
(sabre blade-std.):
1" x 12" (25 x 300 mm)
90 degree v-notcher:
6" x 6" x 5/16" (150 x 150 x 8 mm)
One round punch & die:
max. diameter 1-1/4"
Notching in leg of channel:
6" to 10" (150 mm to 250 mm)
Angle shear capacity @ 90 degrees:
6" x 6" x 1/2"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW SCOTCHMAN 120 TON IRONWORKER
MODEL: DO 120/200-24M
*MADE IN THE USA*
STANDARD FEATURES:
Dual operator allows for two operators to work at the same time at full capacity
120-ton punch station (1-1/2" in 1")
Keyed punch ram for safety
12" throat depth
Punch gauging table with fence and scale
Die holder complete with 2" and 2-1/2" die inserts
Punch nut with wrench and stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Two 2-stage hydraulic pumps
Two valves
Angle shear capacity @ 90 degrees: 6" x 6" x 1/2"
Rectangle notcher 3" x 5-3/4" x 1/2"
Notcher table with guides
200-ton, 24" flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt/3-ph electrics (must specify voltage)
All guards necessary to comply with ANSI B 11-5 standards
Forklift accommodations
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 120 ton (108 mt)
.................................. 1-1/2" in 1" (38 mm in 25 mm)
Special tooling .................................... 4" max. dia. (100 mm max. dia.)
Throat depth ....................................... 12" (300 mm)
Flat bar shear ................................. 200 ton, 24" length (600 mm)
(sabre blade-std.) ................................. 1" x 12" (25 x 300 mm)
................................. 3/4" x 20" (18 x 500 mm)
................................. 1/2" x 24" (12 x 600 mm)
Angle shear
90 degrees ........................................ 6" x 6" x 1/2" (150 x 150 x 12 mm)
45 degrees ........................................ 3" x 3" x 3/8" (75 x 75 x 10 mm)
(w/Bar shear) ..................................... 4" x 4" x 1/2" (100 x 100 x 12 mm)
Brake 12" .......................................... 75 ton (55 mt)
Brake 24" .......................................... 55 ton (40 mt)
Open end brake ..................................... Max. 1/4" x 5" (6 x 125 mm) flat or angle iron
Pipe notcher ....................................... 3/4", 1" (19 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
90 degree V-notcher ................................ 6" x 6" x 5/16" (150 x 150 x 8 mm)
Rectangle notcher .................................. 3" x 5-3/4" x 1/2" (75 x 145 x 12 mm)
V-notch ............................................ 3" x 3" x 1/2" (75 x 75 x 12 mm)
Notching in leg of channel ......................... 6" to 10" (150 mm to 250 mm)
Channel shear ...................................... 2" to 6" adj. (50 mm to 150 mm)
Strut shear ........................................ samples required
Rod shear
Round rod (max.) .................................. 1/4" to 1-1/4", 9 cav
