16" Swing 40" Centers Sharp
Location:
Harrison, NJ
Price:
$19,600 USD
Manufacturer:
Sharp
Model:
1640LV
Spindle Bore:
3-1/16"
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
136728
D model:
1640LV w/Digital Variable Speed
Age info:
NEW
Bed width:
11-3/4"
Bed length:
59"
Quill taper:
MT #4
Spindle bore:
3-1/16"
Compound width:
4.5"
Quill diameter:
2-1/4"
Swing over bed:
16"
Taper of center:
MT #4
Crosslide travel:
8.7"
D.p. threads (36):
4 - 56mm
Inch threads (36):
4 - 56 TPI
Spindle nose type:
D1-8 Camlock
Compound rest travel:
4.9"
Swing over crosslide:
8-3/4"
Swing over gap, width:
24-3/8", 10-3/4"
Taper of spindle bore:
MT #6
Crossfeed - in/rev (12):
0.001 - 0094"
Distance between centers:
40"
Quill travel (graduated):
5"
Leadscrew pitch, diameter:
4 TPI, 1-3/8"
Net weight (approximately):
3,600 lbs
Metric & module threads (17):
0.5 - 7mm
Spindle speeds (inf. variable):
20 - 2,000 RPM
Longitudinal feeds - in/rev (18):
0.002 - .032"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

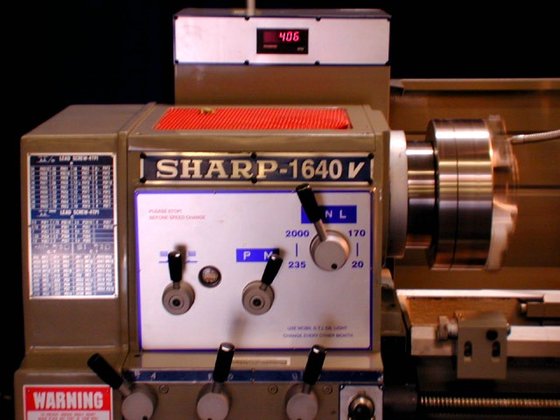

NEW SHARP 16" x 40" HI-SPEED PRECISION LATHE
d MODEL: 1640LV w/Digital Variable Speed
**MADE IN TAIWAN**
CAPACITY
Swing over bed: 16"
Swing over crosslide: 8-3/4"
Swing over gap, width: 24-3/8", 10-3/4"
Distance between centers: 40"
HEADSTOCK
Spindle nose type: D1-8 Camlock
Spindle bore: 3-1/16"
Spindle Speeds (Inf. Variable): 20 - 2,000 RPM
Taper of spindle bore: MT #6
Taper of center: MT #4
THREADS & FEEDS
Longitudinal feeds - in/rev (18): 0.002 - .032"
Crossfeed - in/rev (12):0.001 - 0094"
Inch threads (36): 4 - 56 TPI
Metric & module threads (17): 0.5 - 7mm
D.P. threads (36): 4 - 56mm
Leadscrew pitch, diameter: 4 TPI, 1-3/8"
CARRIAGE
Crosslide travel: 8.7"
Compound rest travel: 4.9"
Compound width: 4.5"
BED
Bed length: 59"
Bed width: 11-3/4"
TAILSTOCK
Quill travel (graduated): 5"
Quill diameter: 2-1/4"
Quill taper: MT #4
GENERAL
7.5 HP Spindle motor (220V, 60 Cycle, 3 Phase)
Requires a transformer for 440 volt operation
Net weight (approximately): 3,600 lbs
STANDARD EQUIPMENT
10" 3-jaw chuck, coolant system, american toolpost, halogen work
light, 16" face plate, steady rest (6"), longitudinal carriage stops,
tool kit, splash guard, & follow rest.
OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout, tracer, taper attachment, micrometer
carriage stop, quick-change tool holder, & 5C collet closer.
