13" Swing 40" Centers Sharp
Location:
Harrison, NJ
Price:
$10,500 USD
Manufacturer:
Sharp
Model:
1340VS
Spindle Bore:
1-9/16"
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
136735
Motor:
3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
D model:
1340VS w/Digital Variable Speed MADE IN TAIWAN
Age info:
NEW
Bed width:
7-1/2"
Bed length:
64"
Apron width:
11"
Quill taper:
MT #3
Spindle bore:
1-9/16"
Width of bed:
7-1/2"
Quill diameter:
1-9/16"
Swing over bed:
13"
Compound travel:
3-1/2"
Cross slide width:
4.5"
Inch threads (39):
2 - 56 TPI
Spindle nose type:
D1-4 Camlock
Cross slide travel:
6-3/4"
Metric threads (42):
0.5 - 12mm
Swing over crosslide:
8-5/16"
Swing over gap, width:
18-1/2"
Taper of spindle bore:
MT #5
Distance between centers:
40"
Quill travel (graduated):
4"
Leadscrew pitch, diameter:
8 TPI, 1"
Net weight (approximately):
1,580 lbs
Cross feeds - in per rev (40):
0.0005 - 0.015
Spindle speeds (inf. variable):
40 - 2,000 RPM
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

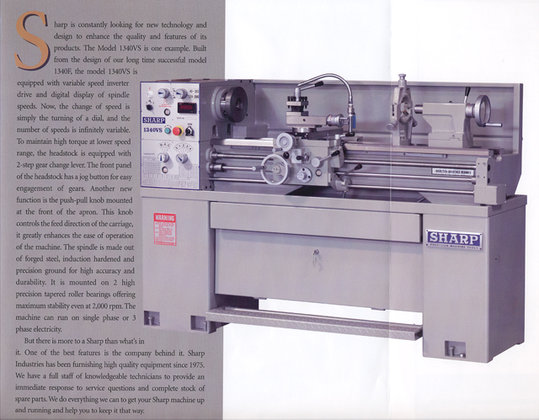

NEW SHARP 13" x 40" HI-SPEED PRECISION LATHE
d MODEL: 1340VS w/Digital Variable Speed MADE IN TAIWAN
FEATURES
- variable speed spindle drive with digital display
- hi-low gear shift for spindle speed, range from 40 - 2,000 RPM
- hardened & ground gears in headstock
- directional control of carriage feed in front of apron for easy operation
- jog button for easy engagement of gears
- induction hardened & ground bedways for rigid structure
- spindle supported by 2 high precision tapered roller bearings
- carriage equipped with overload clutch to protect gears & screws
- available for 3 phase or single phase electrics operation
- electrically activated foot brake for quick stopping action
- built-in cabinet for tools storage
CAPACITY
Swing over bed: 13"
Swing over crosslide: 8-5/16"
Swing over gap, width: 18-1/2"
Width of bed: 7-1/2"
Distance between centers: 40"
HEADSTOCK
Spindle nose type: D1-4 Camlock
Spindle bore: 1-9/16"
Spindle Speeds (Inf. Variable): 40 - 2,000 RPM
Taper of spindle bore: MT #5
THREADS & FEEDS
Longitudinal feeds - inch per rev (40): 0.0016 - .0046
Cross feeds - in per rev (40): 0.0005 - 0.015
Inch threads (39): 2 - 56 TPI
Metric threads (42): 0.5 - 12mm
Leadscrew pitch, diameter: 8 TPI, 1"
CARRIAGE
Cross slide travel: 6-3/4"
Compound travel: 3-1/2"
Apron width: 11"
Cross slide width: 4.5"
BED
Bed length: 64"
Bed width: 7-1/2"
TAILSTOCK
Quill travel (graduated): 4"
Quill diameter: 1-9/16"
Quill taper: MT #3
GENERAL
Motor: 3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
440 Volt Operation requires an optional transformer
Net weight (approximately): 1,580 lbs
STANDARD EQUIPMENT
coolant system, 4-way toolpost, steady rest, thread dial, foot
brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
removable gap block & splash guard.
OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout system, taper attachment, micrometer
carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
(12"), single toolpost, live center (MT #3), & drill chuck.
