14" Swing 40" Centers Sharp
Location:
Harrison, NJ
Price:
$12,560 USD
Manufacturer:
Sharp
Model:
1440V
Spindle Bore:
1-1/2"
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
136736
Motor:
3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
D model:
1440V w/Digital Variable Speed **MADE IN TAIWAN**
Age info:
NEW
Bed width:
8-1/8"
Bed length:
66"
Apron width:
11"
Quill taper:
MT #3
Saddle width:
13-1/4"
Spindle bore:
1-1/2"
Width of bed:
8-1/2"
Quill diameter:
1-3/4"
Spindle speeds:
30 - 2,200 RPM
Swing over bed:
14"
Cross slide width:
6-3/4"
Inch threads (40):
4 - 112 TPI
Spindle nose type:
D1-4 Camlock
Cross slide travel:
7"
Metric threads (22):
0.45 - 7.5mm
Compound rest travel:
4"
Swing over crosslide:
8-5/8"
Swing over gap, width:
20"
Taper of spindle bore:
MT #5
Compound width x length:
3-1/2 x 8-1/2
Distance between centers:
40"
Quill travel (graduated):
4-1/2"
Cross feeds - in/rev (40):
0.0003 - 0.01"
Leadscrew pitch, diameter:
8 TPI, 7/8"
Net weight (approximately):
1,650 lbs
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

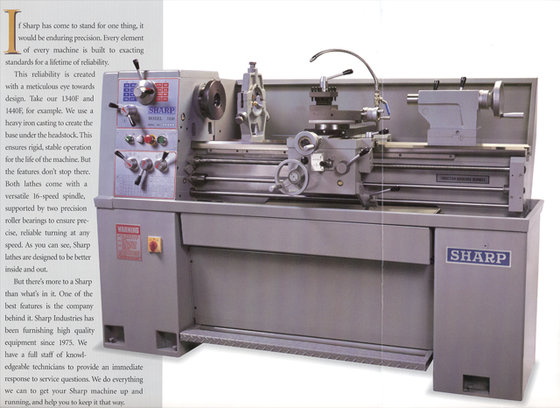

NEW SHARP 14" x 40" HI-SPEED PRECISION LATHE
d MODEL: 1440V w/Digital Variable Speed **MADE IN TAIWAN**
FEATURES
- variable speed spindle drive with digital display
- hi-low gear shift for spindle speed, range from 30 - 2,200 RPM
- hardened & ground gears in headstock
- jog button for easy engagement of gears
- induction hardened & ground bedways for rigid structure
- spindle supported by 2 high precision tapered roller bearings
- carriage equipped with overload clutch to protect gears & screws
- available for 3 phase or single phase electrics operation
- electrically activated foot brake for quick stopping action
- built-in cabinet for tools storage
CAPACITY
Swing over bed: 14"
Swing over crosslide: 8-5/8"
Swing over gap, width: 20"
Width of bed: 8-1/2"
Distance between centers: 40"
HEADSTOCK
Spindle nose type: D1-4 Camlock
Spindle bore: 1-1/2"
Spindle Speeds: 30 - 2,200 RPM
Taper of spindle bore: MT #5
THREADS & FEEDS
Longitudinal feeds - inch per rev (40): 0.0012 - .0294"
Cross feeds - in/rev (40): 0.0003 - 0.01"
Inch threads (40): 4 - 112 TPI
Metric threads (22): 0.45 - 7.5mm
Leadscrew pitch, diameter: 8 TPI, 7/8"
CARRIAGE
Saddle width: 13-1/4"
Apron width: 11"
Cross slide width: 6-3/4"
Cross slide travel: 7"
Compound rest travel: 4"
Compound width x length: 3-1/2 x 8-1/2
BED
Bed length: 66"
Bed width: 8-1/8"
TAILSTOCK
Quill travel (graduated): 4-1/2"
Quill diameter: 1-3/4"
Quill taper: MT #3
GENERAL
Motor: 3 hp (220 Volts, Your Choice of Single Phase or 3 Phase)
440 Volt Operation requires an optional transformer
Net weight (approximately): 1,650 lbs
STANDARD EQUIPMENT
coolant system, 4-way toolpost, steady rest, thread dial, foot
brake, center sleeve (MT #5 x #3), dead centers (MT #3) tool kit,
removable gap block & splash guard.
OPTIONAL EQUIPMENT (Call for prices)
Follow rest, digital readout system, taper attachment, micrometer
carriage stop, 3-jaw scroll chuck (8"), 4-jaw chuck (8"), face plate
(12"), single toolpost, live center (MT #3), & drill chuck.
