22" Swing 80" Centers Sharp
Location:
Harrison, NJ
Price:
$30,600 USD
Manufacturer:
Sharp lathes
Model:
2280C
Spindle Bore:
3-1/8"
Distance between Centers:
80"

Specifications

Condition:
new
Stock number:
136741
D model:
2280C *** MADE IN TAIWAN ***
Age info:
NEW
Bed width:
15-3/4"
Bed length:
99"
Quill taper:
MT #5
Spindle bore:
3-1/8"
Compound width:
6"
Quill diameter:
3"
Swing over bed:
22"
Taper of center:
MT #5
Crosslide travel:
12"
D.p. threads (36):
4 - 56mm
Inch threads (44):
2 - 56 TPI
Spindle nose type:
D1-8 Camlock
Spindle speeds (12):
15 - 1,500 RPM
Compound rest travel:
6.2"
Swing over crosslide:
13-1/2"
Swing over gap, width:
31", 12"
Taper of spindle bore:
MT #7
Crossfeed - in/rev (12):
0.001 - 0094"
Distance between centers:
80"
Quill travel (graduated):
6-1/2"
Leadscrew pitch, diameter:
4 TPI, 1-1/2"
Net weight (approximately):
5,900 lbs
Metric & module threads (24):
0.5 - 14mm
Longitudinal feeds - in/rev (18):
0.002 - .032"
Spindle motor (220v or 440v, 60, 3):
15 hp
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

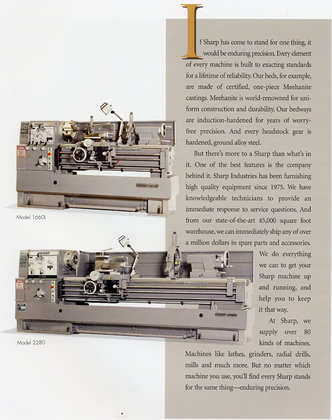

NEW SHARP 22" x 80" HI-SPEED PRECISION LATHE
d MODEL: 2280C *** MADE IN TAIWAN ***
CAPACITY
Swing over bed: 22"
Swing over crosslide: 13-1/2"
Swing over gap, width: 31", 12"
Distance between centers: 80"
HEADSTOCK
Spindle nose type: D1-8 Camlock
Spindle bore: 3-1/8"
Spindle Speeds (12): 15 - 1,500 RPM
Taper of spindle bore: MT #7
Taper of center: MT #5
THREADS & FEEDS
Longitudinal feeds - in/rev (18): 0.002 - .032"
Crossfeed - in/rev (12):0.001 - 0094"
Inch threads (44): 2 - 56 TPI
Metric & module threads (24): 0.5 - 14mm
D.P. threads (36): 4 - 56mm
Leadscrew pitch, diameter: 4 TPI, 1-1/2"
CARRIAGE
Crosslide travel: 12"
Compound rest travel: 6.2"
Compound width: 6"
BED
Bed length: 99"
Bed width: 15-3/4"
TAILSTOCK
Quill travel (graduated): 6-1/2"
Quill diameter: 3"
Quill taper: MT #5
GENERAL
Spindle motor (220V or 440V, 60, 3): 15 hp
Net weight (approximately): 5,900 lbs
STANDARD EQUIPMENT
14" 4-jaw chuck, 4-way toolpost, halogen work light, 18" face
plate, steady rest (9" cap.), 4-position longitudinal carriage stops,
tool kit, coolant system & splash guards, chuck guard.
OPTIONAL EQUIPMENT (Call for prices)
Various Sizes of 3 Jaw Chucks, Follow rest, various brands of
digital readouts, tracer attachment, taper attachment, micrometer
carriage stop, quick-change tool posts (KDK or Aloris), Live
centers, Jacobs drill chuck & 5C collet closer.
