Top Seller
42" Table 3HP Spindle Sharp
Location:
Harrison, NJ
Price:
$8,570 USD
Manufacturer:
Sharp
Model:
LMV-42
Weight:
2,400 lbs.

Specifications

Condition:
new
Stock number:
136773
Motor:
3 hp
Taper:
R-8
D model:
LMV-42 ** MADE IN TAIWAN **
Age info:
NEW
Ram travel:
12"
Head swivel:
360 degree
Knee travel:
16"
Quill travel:
Z-Axi.................. 5"
Table travel:
X-Axis................. 30"
Saddle travel:
Y-Axi................. 12"
Wiring voltage:
220/440V, 3Ph, 60Hz
Working surface:
9 x 42"
Quill feed (ipr):
0.0015, 0.003, 0.006"
Floor area (w x d):
7 x 6.5"
Speed (vari speed):
60-4,500 RPM
T-slot number, size:
3, 5/8"
Spindle to nose to table:
2-1/8 - 18"
Net weight (approximately):
2,400 lbs.
Spindle to column (min-max):
6-3/4 - 18-1/2"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

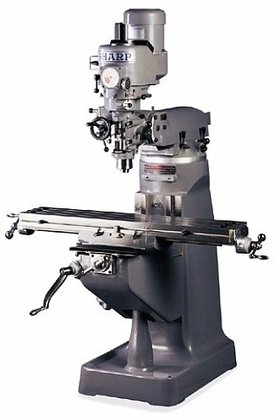

NEW SHARP 9" X 42" VERTICAL MILLING MACHINE
d MODEL: LMV-42 ** MADE IN TAIWAN **
TABLE:
Working Surface...................... 9 x 42"
T-Slot Number, Size.................. 3, 5/8"
CAPACITY:
Table Travel: X-Axis................. 30"
Saddle Travel: Y-Axi................. 12"
Ram Travel........................... 12"
Quill Travel: Z-Axi.................. 5"
Knee Travel.......................... 16"
Spindle to Column (min-max).......... 6-3/4 - 18-1/2"
Spindle to Nose to Table............. 2-1/8 - 18"
SPINDLE:
Motor................................ 3 hp
Wiring Voltage....................... 220/440V, 3Ph, 60Hz
Taper................................ R-8
Speed (vari speed)................... 60-4,500 RPM
Quill Feed (IPR)..................... 0.0015, 0.003, 0.006"
Head Swivel.......................... 360 degree
Head Tilt; right-to-left (each way).. 45 degree
Head Tilt; up-and-down (each way).... 45 degree
DIMENSIONS & WEIGHT:
Floor Area (w x d)................... 7 x 6.5"
Net Weight (approximately)........... 2,400 lbs.
STANDARD EQUIPMENT:
3 HP Variable Speed head w/Dual Cooling Fans
ABEC-7 Super-Precision Spindle Bearings
Self-Lubricating Motor Shaft - extends pulley life
Cutler-Hammer on/off switch
Hard-chromed ways
Meehanite Casting
Front and rear rubber way covers
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
DVS (Digital Variable Speed) Head instead of manual variable speed
Power feeds for table, saddle and/or knee with safety handles
R-8 collet set
Kurt or Imported Milling vises
Clamping kit
Right-angle milling attachment
Riser block
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Halogen Worklight
