Top Seller
50" Table 5HP Spindle Sharp
Location:
Harrison, NJ
Price:
$30,160 USD
Manufacturer:
Sharp
Model:
TMV - Series II
Weight:
3,300

Specifications

Condition:
new
Stock number:
136778
Motor:
5 HP
Taper:
#40 NST
Height:
88"
D model:
TMV - Series II **MADE IN TAIWAN**
Accuracy:
0.0002" TIR
Age info:
NEW
Ram travel:
18.5"
Knee travel:
15.3"
Quill travel:
z-axis 5"
Table travel:
x-axis 39"
Saddle travel:
y-axis 16.3"
Wiring voltage:
220V or 440V (please specify), 3 Ph, 60 Hz
Working surface:
10" x 50"
Quill feed (ipr):
0.0015, 0.003, 0.005
Floor area (w x d):
70" x 75"'
Speed (vari speed):
60-4,500 RPM
T-slot number, size:
3, 5/8"
Throat distance (min-max):
9.8-28.3"
Net weight (lbs; approximately):
3,300
Spindle guage line to table top:
1.6-16.9"
Head tilt - up-and-down (each way):
45°
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

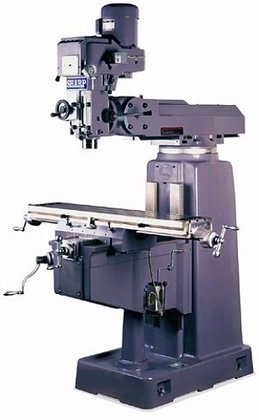

NEW SHARP 10 X 50" VERTICAL MILLING MACHINE
W/ 2-AXIS 3000M CONTROL
d MODEL: TMV - Series II **MADE IN TAIWAN**
TABLE
Working surface: 10" x 50"
T-slot number, size: 3, 5/8"
CAPACITY
Table travel: x-axis 39"
Saddle travel: y-axis 16.3"
Ram travel: 18.5"
Quill travel: z-axis 5"
Knee travel: 15.3"
Throat distance (min-max): 9.8-28.3"
Spindle guage line to table top: 1.6-16.9"
SPINDLE
Motor: 5 HP
Wiring voltage: 220V or 440V (please specify), 3 Ph, 60 Hz
Taper: #40 NST
Speed (vari speed): 60-4,500 RPM
Quill feed (IPR): 0.0015, 0.003, 0.005
Accuracy: 0.0002" TIR
Head tilt - right to left (each way): 90°
Head tilt - up-and-down (each way): 45°
DIMENSIONS AND WEIGHT
Floor area (w x d): 70" x 75"'
Height: 88"
Net weight (lbs; approximately): 3,300
STANDARD EQUIPMENT:
5 HP Variable Speed head w/Dual Cooling Fans
ABEC-7 Super-Precision Spindle Bearings
Self-Lubricating Motor Shaft - extends pulley life
Cutler-Hammer on/off switch
Hardened and Ground Square Saddle and Column Ways
Meehanite Casting
Front and rear rubber way covers
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Power feeds for table, saddle and/or knee with safety handles
Kurt or Imported Milling vises
Clamping kit
Right-angle milling attachment
Riser block
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Halogen Worklight
