Top Seller
58" Table 5HP Spindle Sharp
Location:
Harrison, NJ
Price:
$24,560 USD
Manufacturer:
Sharp
Model:
V-1 - 12" x 58" Table
Weight:
4,500

Specifications

Condition:
new
Stock number:
136780
Motor:
5 HP
Taper:
#40 NST
Height:
92"
D model:
V-1 w/5 HP Inverter Driven Vari-Speed Drive
Accuracy:
0.0002" TIR
Age info:
NEW
Knee travel:
16"
Quill travel:
z-axis 5"
Table travel:
x-axis 40"
Saddle travel:
y-axis 16"
Wiring voltage:
220V, 3 Ph, 60 Hz
Working surface:
12" x 58"
Quill feed (ipr):
0.0015, 0.003, 0.005
Floor area (w x d):
76" x 83"'
Speed (vari speed):
60-4,500 RPM
T-slot number, size:
3, 5/8"
Net weight (lbs; approximately):
4,500
Head tilt - up-and-down (each way):
45°
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

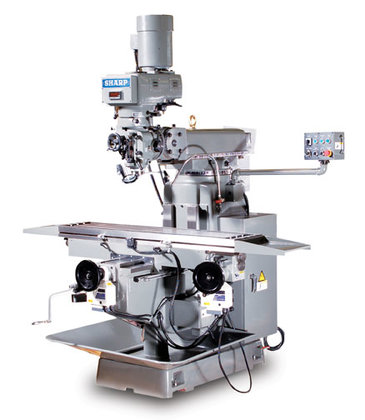

NEW SHARP 12 X 58" VERTICAL MILLING MACHINE
d MODEL: V-1 w/5 HP Inverter Driven Vari-Speed Drive
*** MADE IN TAIWAN ***
FEATURES
d 5 HP Inverter Driven Variable Speed head
Hardened and Ground Square Ways Throughout
Fully Ribbed, High Tensile Strength Castings
Handle Actuated Power Feed for Table and Saddle
Motorized Rapid Knee Positioning
TABLE
Working surface: 12" x 58"
T-slot number, size: 3, 5/8"
CAPACITY
Table travel: x-axis 40"
Saddle travel: y-axis 16"
Quill travel: z-axis 5"
Knee travel: 16"
SPINDLE
Motor: 5 HP
Wiring voltage: 220V, 3 Ph, 60 Hz
Taper: #40 NST
Speed (vari speed): 60-4,500 RPM
Quill feed (IPR): 0.0015, 0.003, 0.005
Accuracy: 0.0002" TIR
Head tilt - right to left (each way): 90°
Head tilt - up-and-down (each way): 45°
DIMENSIONS AND WEIGHT
Floor area (w x d): 76" x 83"'
Height: 92"
Net weight (lbs; approximately): 4,500
STANDARD EQUIPMENT:
Front and rear rubber way covers
Complete Coolant System including tray, nozzle and connecting hoses
One Shot Lube system
Cast Metal Trays on both ends of the table
Draw bar
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Kurt or Imported Milling vises
Clamping kit
Riser block
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Jacobs Drill chuck w/Arbor R40
Halogen Worklight
