56" Table 5HP Spindle Sharp
Location:
Harrison, NJ
Price:
$28,650 USD
Manufacturer:
Sharp
Model:
VH-25 Vert/Horz Mill
Weight:
4,200

Specifications

Condition:
new
Stock number:
136781
Motor:
4 HP
Taper:
#40 NST
Height:
93"
D model:
VH-25 ***MADE IN TAIWAN***
Motor 2:
5 HP
Age info:
NEW
Speed (6):
80 - 1,350 RPM
Ram travel:
18.5"
Knee travel:
17.5"
Quill travel:
z-axis 5"
Table travel:
x-axis 36"
Saddle travel:
y-axis 16.5"
Wiring voltage:
220V, 3 Ph, 60 Hz
Working surface:
10" x 56"
Quill feeds (ipr):
0.0016, 0.003, 0.006
Floor area (w x d):
82" x 75"'
Speed (vari speed):
60-4,500 RPM
T-slot number, size:
3, 5/8"
Throat distance (min-max):
12.8"-30.7"
Net weight (lbs; approximately):
4,200
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

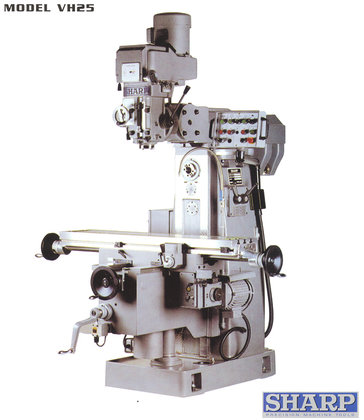

NEW SHARP 10 x 56" HEAVY DUTY VERTICAL/HORIZONTAL MILLING MACHINE
d MODEL: VH-25 ***MADE IN TAIWAN***
TABLE
Working surface: 10" x 56"
T-slot number, size: 3, 5/8"
CAPACITY
Table travel: x-axis 36"
Saddle travel: y-axis 16.5"
Ram travel: 18.5"
Quill travel: z-axis 5"
Knee travel: 17.5"
Throat distance (min-max): 12.8"-30.7"
VERTICAL SPINDLE
Motor: 4 HP
Wiring voltage: 220V, 3 Ph, 60 Hz
Taper: #40 NST
Speed (vari speed): 60-4,500 RPM
Quill feeds (IPR): 0.0016, 0.003, 0.006
Head tilt - right to left (each way): 90°
Head tilt - front-to-back (each way): 45°
HORIZONTAL SPINDLE
Motor: 5 HP
Wiring voltage: 220V, 3 Ph, 60 Hz
Taper: #40 NST
Speed (6): 80 - 1,350 RPM
Spindle Center Line to Table (min-max): 0 - 17.4"
DIMENSIONS AND WEIGHT
Floor area (w x d): 82" x 75"'
Height: 93"
Net weight (lbs; approximately): 4,200
STANDARD EQUIPMENT:
Turcite Saddle Ways, Box Type Column Ways
Power Feed Table (7/8 - 27 IPM) with Rapid Traverse (82.5 IPM)
Rapid Knee Traverse
1" Diameter Arbor and (2) Arbor Supports
Hardened and Ground Double Box Knee Ways
Meehanite Casting - 4200 Lbs Net Weight
Flood Coolant Sytem w/Splash Pan
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Servo Power feed for saddle (cross) with safety handles
Kurt or Imported Milling vises
Clamping kit
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Halogen Worklight
