51" Table 7.5HP Spindle Sharp
Location:
Harrison, NJ
Price:
$43,830 USD
Manufacturer:
Sharp
Model:
UH-3 Universal/Horz Mill
Weight:
5,170

Specifications

Condition:
new
Stock number:
136783
Motor:
7.5 HP
Taper:
#50 NST
Height:
67-5/16"
D model:
UH-3 *** MADE IN TAIWAN ***
Age info:
NEW
Ram travel:
20-1/16"
Knee travel:
18.5"
Speeds (12):
35 - 1,382 RPM
Table swivel:
90 Degrees
Table travel:
x-axis 38"
Saddle travel:
y-axis 15"
Wiring voltage:
220V or 440V, 3 Ph, 60 Hz
Working surface:
12" x 51"
Floor area (w x d):
117" x 69"'
T-slot number, size:
3, 5/8"
Throat distance (min-max):
12.8"-30.7"
Net weight (lbs; approximately):
5,170
Subcategory:
Mills
Subcategory 2:
New horizontal mills

Description

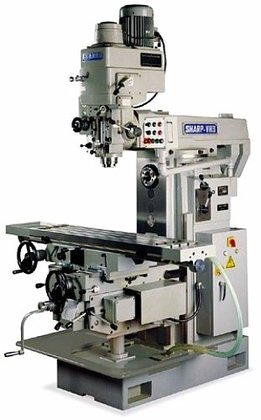

NEW SHARP 12 x 52" UNIVERSAL HORIZONTAL MILL
d MODEL: UH-3 *** MADE IN TAIWAN ***
TABLE
Working surface: 12" x 51"
T-slot number, size: 3, 5/8"
CAPACITY
Table travel: x-axis 38"
Saddle travel: y-axis 15"
Ram travel: 20-1/16"
Table Swivel: 90 Degrees
Knee travel: 18.5"
Throat distance (min-max): 12.8"-30.7"
HORIZONTAL SPINDLE
Motor: 7.5 HP
Wiring voltage: 220V or 440V, 3 Ph, 60 Hz
Taper: #50 NST
Speeds (12): 35 - 1,382 RPM
Spindle Center Line to Table (min-max): 0 - 18-1/2"
DIMENSIONS AND WEIGHT
Floor area (w x d): 117" x 69"'
Height: 67-5/16"
Net weight (lbs; approximately): 5,170
STANDARD EQUIPMENT:
3 HP Table Feed & Rapid Traverse Motor (for all 3 Axes)
X & Y Table Feeds (1/2 - 24-7/8 IPM) w/ Rapid Traverse (116.5 IPM)
Vertical Feed to Knee (1/4 - 12-7/16 IPM) w/Rapid Traverse (60 IPM)
1.25" Diameter Arbor and (2) Arbor Supports
Massive Hardened and Ground Box Ways Throughout
Lever Control forward & reverse for Tapping & Boring
Climb Milling Compensator
Coolant System and Pressurized Auto Lube System
OPTIONAL ACCESSORIES (call for pricing):
Kurt or Imported Milling vises
Clamping kit
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars
Halogen Worklight
