Top Seller
67" Table 10HP Spindle Sharp
Location:
Harrison, NJ
Price:
$52,500 USD
Manufacturer:
Sharp
Model:
KMA-1 Vertical Mill
Weight:
8,800

Specifications

Condition:
new
Stock number:
136784
Motor:
10 HP
Taper:
#50 NST
Height:
86-5/8"
Motors:
10 HP Spindle, 1 HP Feeds, 1/4 HP Lube, 1/8 HP Coolant
Rapids:
Table X & Y - 113-3/8 IPM
D model:
KMA-1 *** MADE IN TAIWAN ***
Age info:
NEW
Speeds (12):
45-1,500 RPM
Table travel:
x-axis 39-3/8"
Saddle travel:
y-axis 15"
Wiring voltage:
220V or 440V (please specify), 3 Ph, 60 Hz
Working surface:
15" x 67"
Floor area (w x d):
126" x 78"'
Table top to floor:
31-1/2"
T-slot number, size:
5, .709"
Feeds vertical (ipr):
0.002 - 0.008
Head travel up & down:
19-11/16"
Net weight (lbs; approximately):
8,800
Feeds cross & longitudinal (ipr):
1-1/8 - 34-7/16
Spindle centerline to column front:
14-15/16"
Spindle nose to table top (min-max):
3-15/16" - 23-5/8"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

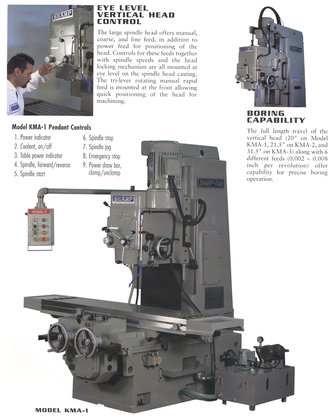

NEW SHARP 15" x 67" HEAVY DUTY BED-TYPE MILL
d MODEL: KMA-1 *** MADE IN TAIWAN ***
TABLE
Working surface: 15" x 67"
T-slot number, size: 5, .709"
CAPACITY
Table travel: x-axis 39-3/8"
Saddle travel: y-axis 15"
Head travel up & down: 19-11/16"
Spindle Nose to Table Top (min-max): 3-15/16" - 23-5/8"
Spindle Centerline to Column Front: 14-15/16"
Table Top to Floor: 31-1/2"
SPINDLE SPECS, FEEDS, RAPIDS, ETC.
Motor: 10 HP
Wiring voltage: 220V or 440V (please specify), 3 Ph, 60 Hz
Taper: #50 NST
Speeds (12): 45-1,500 RPM
Feeds Vertical (IPR): 0.002 - 0.008
Feeds Cross & Longitudinal (IPR): 1-1/8 - 34-7/16
Rapids: Table X & Y - 113-3/8 IPM
Motors: 10 HP Spindle, 1 HP Feeds, 1/4 HP Lube, 1/8 HP Coolant
DIMENSIONS AND WEIGHT
Floor area (w x d): 126" x 78"'
Height: 86-5/8"
Net weight (lbs; approximately): 8,800
STANDARD EQUIPMENT:
Pendant Control
Adjustable Table Backlash Eliminator
Automatic Table Feeds with Rapid Traverse
Full Coolant System
Hardened and Ground Box Ways Throughout
Automatic Lubrication System
All Leveling blocks & hardware
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Kurt or Imported Milling vises
Clamping kit
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars with foot pedal control
Halogen Worklight
