86.6" Table 20HP Spindle Sharp
Location:
Harrison, NJ
Price:
$79,540 USD
Manufacturer:
Sharp
Model:
KMA-3 Vertical Mill
Weight:
14,080

Specifications

Condition:
new
Stock number:
136786
Motor:
20 HP
Taper:
#50 NST
Height:
113"
Motors:
20 HP Spindle, 2.5 HP Feeds, 1/8 HP Coolant
Rapids:
Table X & Y - 129-7/8 IPM
Model 2:
KMA-3 *** MADE IN TAIWAN ***
Age info:
NEW
Speeds (12):
45-1,500 RPM
Table travel:
x-axis 59"
Saddle travel:
y-axis 23-5/8"
Wiring voltage:
220V or 440V (please specify), 3 Ph, 60 Hz
Working surface:
19.6" x 86.6"
Floor area (w x d):
179-1/2" x 100-3/8"'
Table top to floor:
33-7/8"
T-slot number, size:
5, .709"
Feeds vertical (ipr):
0.002 - 0.008
Head travel up & down:
30"
Net weight (lbs; approximately):
14,080
Feeds cross & longitudinal (ipr):
1-1/8 - 34-7/16
Spindle centerline to column front:
21-5/8"
Spindle nose to table top (min-max):
3-15/16" - 32-11/16"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

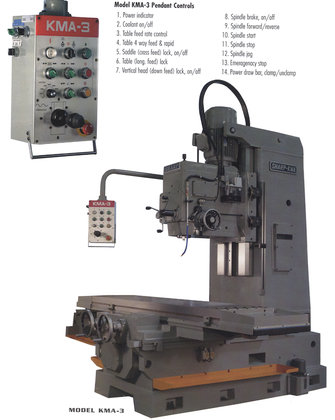

NEW SHARP 20" x 87" BED-TYPE VERTICAL MILL
MODEL: KMA-3 *** MADE IN TAIWAN ***
TABLE
Working surface: 19.6" x 86.6"
T-slot number, size: 5, .709"
CAPACITY
Table travel: x-axis 59"
Saddle travel: y-axis 23-5/8"
Head travel up & down: 30"
Spindle Nose to Table Top (min-max): 3-15/16" - 32-11/16"
Spindle Centerline to Column Front: 21-5/8"
Table Top to Floor: 33-7/8"
SPINDLE SPECS, FEEDS, RAPIDS, ETC.
Motor: 20 HP
Wiring voltage: 220V or 440V (please specify), 3 Ph, 60 Hz
Taper: #50 NST
Speeds (12): 45-1,500 RPM
Feeds Vertical (IPR): 0.002 - 0.008
Feeds Cross & Longitudinal (IPR): 1-1/8 - 34-7/16
Rapids: Table X & Y - 129-7/8 IPM
Motors: 20 HP Spindle, 2.5 HP Feeds, 1/8 HP Coolant
DIMENSIONS AND WEIGHT
Floor area (w x d): 179-1/2" x 100-3/8"'
Height: 113"
Net weight (lbs; approximately): 14,080
STANDARD EQUIPMENT:
Pendant Control
Adjustable Table Backlash Eliminator
Automatic Table Feeds with Rapid Traverse
Full Coolant System
Hardened and Ground Box Ways Throughout
Automatic Lubrication System
All Leveling blocks & hardware
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Kurt or Imported Milling vises
Clamping kit
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars with foot pedal control
Halogen Worklight
