Top Seller
86.6" Table 20HP Spindle Sharp
Location:
Harrison, NJ
Price:
$101,150 USD
Manufacturer:
Sharp
Model:
KMA-3H Horizontal Mill
Weight:
14,000

Specifications

Condition:
new
Stock number:
136787
Taper:
#50 NST
D model:
KMA-3H **MADE IN TAIWAN**
Age info:
NEW
Speeds (12):
45-1,500 RPM
Table travel:
x-axis 59"
Saddle travel:
y-axis 23-5/8"
Wiring voltage:
220V or 440V (please specify), 3 Ph, 60 Hz
Working surface:
19.6" x 86.6"
Floor area (w x d):
179-1/2" x 100-3/8"'
Table top to floor:
33-7/8"
T-slot number, size:
5, .709"
Net weight (lbs; approximately):
14,000
Subcategory:
Mills
Subcategory 2:
New horizontal mills

Description

NEW SHARP 20" x 87" BED-TYPE HORIZONTAL MILL
d MODEL: KMA-3H **MADE IN TAIWAN**
TABLE
Working surface: 19.6" x 86.6"
T-slot number, size: 5, .709"
d CAPACITY
Table travel: x-axis 59"
Saddle travel: y-axis 23-5/8"
Table Top to Floor: 33-7/8"
SPINDLE SPECS, FEEDS, RAPIDS, ETC.
20 HP Variable Frequency Motor
Wiring voltage: 220V or 440V (please specify), 3 Ph, 60 Hz
Taper: #50 NST
Speeds (12): 45-1,500 RPM
W-Axis Ballscrew and Servo Motor
DIMENSIONS AND WEIGHT
Floor area (w x d): 179-1/2" x 100-3/8"'
Net weight (lbs; approximately): 14,000
STANDARD EQUIPMENT:

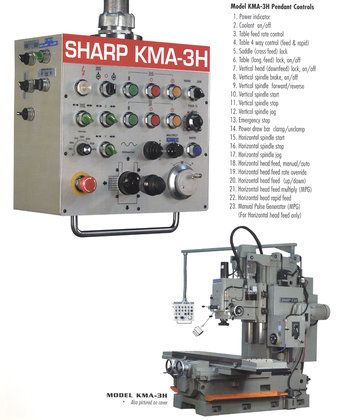

Pendant Control
Adjustable Table Backlash Eliminator
Automatic Table Feeds with Rapid Traverse
Full Coolant System
Hardened and Ground Box Ways Throughout
Automatic Lubrication System
All Leveling blocks & hardware
Tool kit
OPTIONAL ACCESSORIES (call for pricing):
Kurt or Imported Milling vises
Clamping kit
D.R.O. system (Acu-Rite, Newall & Sony can be factory installed)
Kurt or Imported Power drawbars with foot pedal control
Halogen Worklight
