6" Width 18" Length Sharp
Location:
Harrison, NJ
Price:
$8,680 USD
Manufacturer:
Sharp
Model:
SG-618
Grinding Length:
18.5"
Weight:
1,600 lbs.

Specifications

Condition:
new
Stock number:
136862
Age info:
NEW
Spindle motor:
1-1/2 hp (wired either 220v or 440v, please specify)
Spindle speed:
3,600 RPM
Grinding wheel bore:
1.25"
Grinding wheel width:
0.63"
Maximum cross travel:
7"
Maximum grinding width:
6.3"
Floor space (w x h x l):
83 x 40 x 48"
Graduatin of hand wheel:
0.0001"
Maximum grinding length:
18.5"
Working surface (w x l):
6 x 18.3"
Graduation of hand wheel:
0.001"
Hand feed per revolution:
4.2"
Hand feed per revolution 2:
.02"
Hand feed per revolution 3:
0.05"
Net weight (approximately):
1,600 lbs.
Maximum longitudinal travel:
18.9"
Grinding wheel outside diameter:
8"

Description

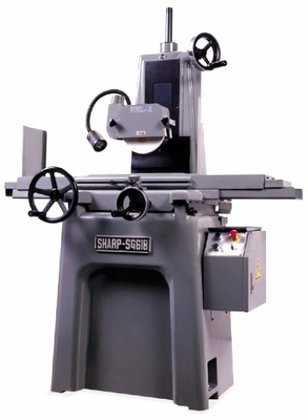

NEW SHARP 6" x 18" HAND FEED PRECISION SURFACE GRINDER MODEL: SG-618 ** MADE IN TAIWAN**
CAPACITY
Maximum grinding length: 18.5"
Maximum grinding width: 6.3"
Maximum distance: table to spindle center: 16"
TABLE
Working Surface (W x L): 6 x 18.3"
Maximum longitudinal travel: 18.9"
Maximum cross travel: 7"
FEED
LONGITUDINAL MOVEMENT OF TABLE
Hand feed per revolution: 4.2"
CROSS MOVEMENT OF SADDLE
Hand feed per revolution: .02"
Graduation of hand wheel: 0.001"
VERTICAL MOVEMENT OF WHEEL HAND
Hand feed per revolution: 0.05"
Graduatin of hand wheel: 0.0001"
SPINDLE AND WHEEL
Spindle motor: 1-1/2 hp (wired either 220v or 440v, please specify)
Spindle speed: 3,600 RPM
Grinding wheel outside diameter: 8"
Grinding wheel bore: 1.25"
Grinding wheel width: 0.63"
GENERAL
Floor space (W x H x L): 83 x 40 x 48"
Net weight (approximately): 1,600 lbs.
FEATURES
One "V" and one flat way for longitudinal travel; both ways are
hand-scraped and covered with Turcite B coating
Accurate slot grinding achieved using saddle locking system
Double-nut backlash eliminator
Cross slide and column screws are hardened and ground to a 70
Rockwell C hardness
Wire rope-driven table
main spindle runout within 0. 0001"
Automatic lubrication system
STANDARD EQUIPMENT:
Grinding Wheel (8" x 1.25" x 0.63")
Wheel adaptor/flange
Work light
Wheel Balancing arbor
Diamond dresser
Tool kit
OPTIONAL (EXTRA COST) ACCESSORIES
Permanent magnetic chuck - coarse or fine pole (Kanetsu)
Electro-magnetic chuck with control (Kanetsu or Walker)
Spare wheel adaptor
Coolant systems with or without paper filtration
Dust collector
Parallel dresser
Wheel Balancing stand
Splash Guards for coolant
Digital readout system (Sony, Acu-Rite or Newall available)
