12" Width 24" Length Sharp
Location:
Harrison, NJ
Price:
$23,300 USD
Manufacturer:
Sharp
Model:
SH-1224
Grinding Length:
24"
Weight:
4,700 lbs

Specifications

Condition:
new
Stock number:
136874
Model 2:
SH-1224 *** MADE IN TAIWAN ***
Age info:
NEW
Spindle motor:
3 hp
Coolant system:
1/8 hp
Approximate weight:
4,700 lbs
Feed per graduation:
0.0005"
Feed per revolution:
0.1"
Continuous cross feed:
39 IPM
Feed per graduation 2:
0.0001"
Feed per revolution 2:
0.05"
Table working surface:
11.6" x 23.6"
Nominal grinding width:
12"
Nominal grinding length:
24"
Wheel size (od x w x id):
14 x 1 x 5"
Rapid downfeed (optional):
18.9 IPM
Number of graduations on dial:
200
Number of graduations on dial 2:
500
Spindle center to table surface:
19.3"
Longitudinal hydraulic table feed:
6.6 - 82 FPM
Intermittent cross feed (in. feed):
0.004 - 0.4 IPM
Table travel (cross x longitudinal):
14" x 27.6"

Description

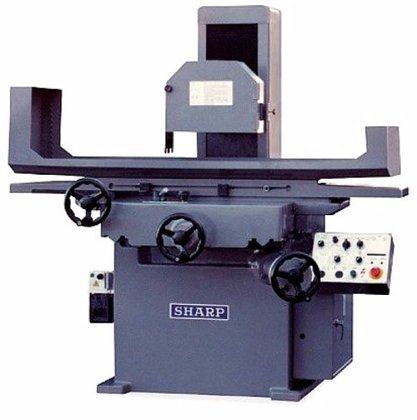

NEW SHARP 11.6" x 23.6" PRECISION AUTOMATIC SURFACE GRINDER
MODEL: SH-1224 *** MADE IN TAIWAN ***
CAPACITY
Nominal grinding length: 24"
Nominal grinding width: 12"
Maximum distance: table to spindle center: 19.3"
TABLE
Table travel (cross x longitudinal): 14" x 27.6"
Spindle center to table surface: 19.3"
Table working surface: 11.6" x 23.6"
Longitudinal hydraulic table feed: 6.6 - 82 FPM
Intermittent cross feed (in. feed): 0.004 - 0.4 IPM
Continuous cross feed: 39 IPM
Number of graduations on dial: 200
Feed per graduation: 0.0005"
Feed per revolution: 0.1"
VERTICAL TRAVEL
Number of graduations on dial: 500
Feed per graduation: 0.0001"
Feed per revolution: 0.05"
Rapid downfeed (optional): 18.9 IPM
SPINDLE AND WHEEL
Wheel size (OD x W x ID): 14 x 1 x 5"
Spindle motor: 3 hp
GENERAL
Coolant system: 1/8 hp
Approximate weight: 4,700 lbs
Packing crate dimensions (W x D x H): 7-1/2' x 5' x 6'
STANDARD EQUIPMENT:
Grinding Wheel
Wheel Flange
Coolant System with guarding
Wheel Balancer and Balancing arbor
Automatic Lubrication System
Tool kit
OPTIONAL (EXTRA COST) ACCESSORIES
Permanent magnetic chuck - coarse or fine pole (Kanetsu)
Electro-magnetic chuck with control (Kanetsu or Walker)
Spare wheel adaptors
Coolant system with paper and magnetic filtration
Dust collector
Parallel or Radius dressers
Wheel Balancing stand
Push-Button Rapid Up & Down Wheelhead
Programmable Microprocessor IDF Control w/CRT Display
