24" Width 87" Length Sharp
Location:
Harrison, NJ
Price:
$108,600 USD
Manufacturer:
Sharp
Model:
SH-2487
Grinding Length:
87"
Weight:
26,600 lbs

Specifications

Condition:
new
Stock number:
136902
Model 2:
SH-2487 **MADE IN TAIWAN**
Age info:
NEW
Spindle motor:
10 hp
Approximate weight:
26,600 lbs
Feed per graduation:
0.001"
Feed per revolution:
0.200"
Continuous cross feed:
39 IPM
Feed per graduation 2:
0.0001"
Feed per revolution 2:
0.010"
Table working surface:
23.6" x 86.6"
Nominal grinding width:
24"
Nominal grinding length:
87"
Wheel size (od x w x id):
14 x 2 x 5"
Rapid downfeed (optional):
11.8 IPM
Number of graduations on dial:
200
Number of graduations on dial 2:
100
Spindle center to table surface:
27.6"
Longitudinal hydraulic table feed:
6.6 - 82 FPM
Intermittent cross feed (in. feed):
0.004 - 0.6 IPM

Description

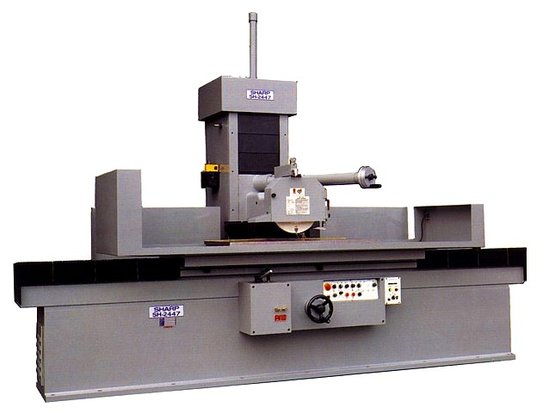

NEW SHARP 24" x 87" COLUMN-TYPE SURFACE GRINDER
MODEL: SH-2487 **MADE IN TAIWAN**
CAPACITY
Nominal grinding length: 87"
Nominal grinding width: 24"
Maximum distance: table to spindle center: 27.6"
TABLE
X & Y travels (cross x longitudinal): 24.8" x 92.5"
Spindle center to table surface: 27.6"
Table working surface: 23.6" x 86.6"
Longitudinal hydraulic table feed: 6.6 - 82 FPM
Intermittent cross feed (in. feed): 0.004 - 0.6 IPM
Continuous cross feed: 39 IPM
Number of graduations on dial: 200
Feed per graduation: 0.001"
Feed per revolution: 0.200"
VERTICAL TRAVEL
Number of graduations on dial: 100
Feed per graduation: 0.0001"
Feed per revolution: 0.010"
Rapid downfeed (optional): 11.8 IPM
SPINDLE AND WHEEL
Wheel size (OD x W x ID): 14 x 2 x 5"
Spindle motor: 10 hp
GENERAL
Approximate weight: 26,600 lbs
Packing crate dimensions (W x D x H): 21' x 7.5' x 8.5'
STANDARD EQUIPMENT:
Grinding Wheel
Ballscrew on Cross Feed
Wheel Flange
Coolant System (25 Gal.) with guarding
Wheel Balancer and Balancing arbor
Automatic Lubrication System
Tool kit
OPTIONAL (EXTRA COST) ACCESSORIES
Criss-Cross Grinding Attachment
Electro-magnetic chuck with control (Kanetsu or Walker)
Spare wheel adaptors
Paper and magnetic filtration
Dust collector
Parallel or Radius dressers
Wheel Balancing stand
Push-Button Rapid Up & Down Wheelhead
Programmable Microprocessor Incr. Downfeed Control w/CRT Display
