Top Seller
13" Dia. 30" Length Sharp
Location:
Harrison, NJ
Price:
$68,050 USD
Model:
OD1330S
Weight:
6,000 lbs.

Specifications

Condition:
new
Stock number:
136917
Height:
6.5'
Model 2:
OD1330S **MADE IN TAIWAN**
Age info:
NEW
Manual feed:
0.5
Wheel drive:
5 hp
Wheel speed:
1650 RPM
Coolant pump:
0.25 hp
Infeed range:
13"
Quill travel:
1"
Swivel angle:
+/- 15 degree
Auto feed rate:
0.04 - 2 IPM
Swivel angle 2:
+90 degrees
Workhead drive:
0.5 hp
Taper of center:
MT#4
Swing over table:
13.6"
Auto infeed range:
0.0001" - 0.04"
Hydraulic pump drive:
1 hp
Swivel away operator:
9 deg
Weight (approximately):
6,000 lbs.
Diameter x width x bore:
16" x 1.5" x 5"
Swivel towards operator:
4 deg
* other models available:
6, 8, 12, and 14" swing; 18-100" capacities
Distance between centers:
30"
Maximum grinding diameter:
13"
Rapid forward and retract:
1.6"
Auto feed (variable speed):
2 - 160 IPM
Manual feed, graduation (dia):
0.08"
Manual feed, revolution (dia):
0.0002"
Spindle speed (infinitely variable):
50 - 350 RPM

Description

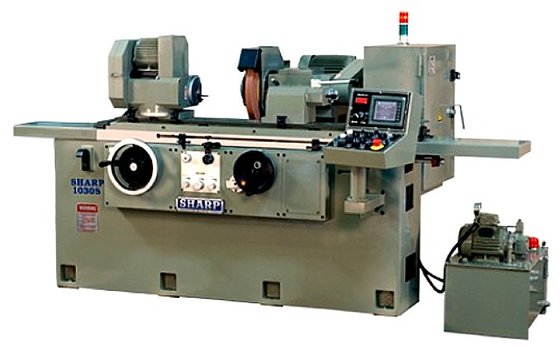

NEW SHARP 13.8" x 29.5" UNIVERSAL CYLINDRICAL GRINDER
w/Servo Driven Ballscrew, Touch Screen Control
Automatic Wheelhead Infeed System
MODEL: OD1330S **MADE IN TAIWAN**
SPECIFICATIONS
CAPACITY
Swing over table: 13.6"
Distance between centers: 30"
Maximum grinding diameter: 13"
WHEELHEAD
Infeed range: 13"
Auto infeed range: 0.0001" - 0.04"
Rapid forward and retract: 1.6"
Auto feed rate: 0.04 - 2 IPM
Manual feed, graduation (dia): 0.08"
Manual feed, revolution (dia): 0.0002"
Swivel angle: +/- 15 degree
GRINDING WHEEL
Diameter x width x bore: 16" x 1.5" x 5"
Wheel speed: 1650 RPM
WORKHEAD
Spindle speed (infinitely variable): 50 - 350 RPM
Swivel angle: +90 degrees
Taper of center: MT#4
TABLE
Auto feed (variable speed): 2 - 160 IPM
Manual feed: 0.5
Swivel towards operator: 4 deg
Swivel away operator: 9 deg
TAILSTOCK
Quill travel: 1"
Taper of center: MT#4
MOTORS
Wheel drive: 5 hp
Workhead drive: 0.5 hp
Hydraulic pump drive: 1 hp
Coolant pump: 0.25 hp
GENERAL
Height: 6.5'
Weight (approximately): 6,000 lbs.
* Other Models Available: 6, 8, 12, and 14" swing; 18-100" capacities
FEATURES & STANDARD EQUIPMENT
- Grinding wheel with flange
- Fixed and rotary type spindle on workhead
- Wheel extractor
- Dead center
- Balancing arbor
- Diamond dresser on workhead
- Work light
- Dial guard
- Front splash guard
- Tool kit
OPTIONAL ACCESSORIES (CALL FOR PRICING):
- Internal grinding attachment
- 3 Jaw (6") jaw chuck with backplate
- Magnetic chuck (6") with backplate
- Balancing stand
- Fully-enclosed splash guard
- Automatic sizing attachment
- Touch probe* Angle truing attachment
- Automatic wheel balance
- Coolant system with magnetic separator
- Spare wheel flange
