Top Seller
0.1345" Cap. 96" Width Birmingham
Location:
Harrison, NJ
Price:
$21,120 USD
Manufacturer:
Birmingham
Model:
H-0835
Capacity:
8'
Weight:
8,200 lbs.

Specifications

Condition:
new
Stock number:
137129
Note:

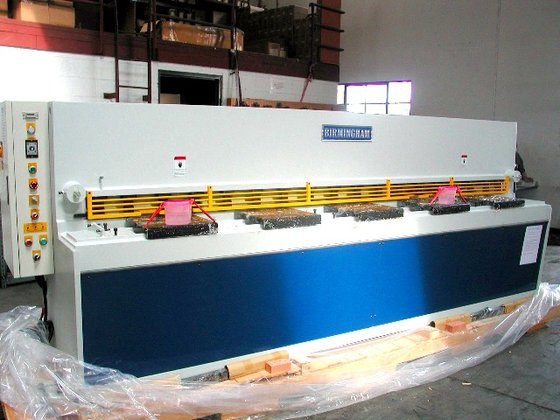

Image shown is similar model H-1035 (10' x 10 Ga. model)
Motor:
10 hp
Model 2:
H-0835 Made In Taiwan
Age info:
NEW
Back gauge:
24"
Mild steel:
10 Ga.
Net weight:
8,200 lbs.
Blade length:
8'4"
Front support:
40"
Stainless steel:
13 Ga.
Cutting capacity:
8'
Oil tank capacity:
40 gallons
Hold-downs - number:
13
Top blade rake angle:
1/2-2 Degrees
Top blade rake adjust:
Hydraulic Adjustment Rake Angle
Strokes per minute (spm):
28-40
Hold-downs - pressure (tons):
6.7
Subcategory:
Shears
Subcategory 2:
New shears

Description

New Birmingham 8' x 10 Ga. Heavy Duty Hydraulic Shear
Model: H-0835 Made In Taiwan
Note: Image shown is similar model H-1035 (10' x 10 Ga. model)
SPECIFICATIONS:
Cutting Capacity: 8'
Mild Steel: 10 Ga.
Stainless Steel: 13 Ga.
Blade Length: 8'4"
Strokes Per Minute (SPM): 28-40
Hold-Downs - Number: 13
Hold-Downs - Pressure (Tons): 6.7
Front Support: 40"
Back Gauge: 24"
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 10 hp
Oil Tank Capacity: 40 gallons
Net Weight: 8,200 lbs.
Overall Dimensions (w/o support arm): 132" x 50" x 65"
STANDARD EQUIPMENT:
Blades
24" manual back gauge
(2) 40" front support arms
40" squaring arm
Finder guard
Foot pedal
Shadow line lighting
OPTIONAL EQUIPMENT:
32" NC power back gauge w/ball screws & NC single axis control
59" squaring arm
79" squaring arm
118" squaring arm
59" front support arm
79" front support arm
118" front support arm
Pneumatic-type thin sheet supporter
Power back gauge with lifting function
Angle gauge
