Top Seller
0.1793" Cap. 120" Width Birmingham
Location:
Harrison, NJ
Price:
$27,280 USD
Manufacturer:
Birmingham
Model:
H-1045
Capacity:
10'
Weight:
10,600 lbs.

Specifications

Condition:
new
Stock number:
137136
Note:

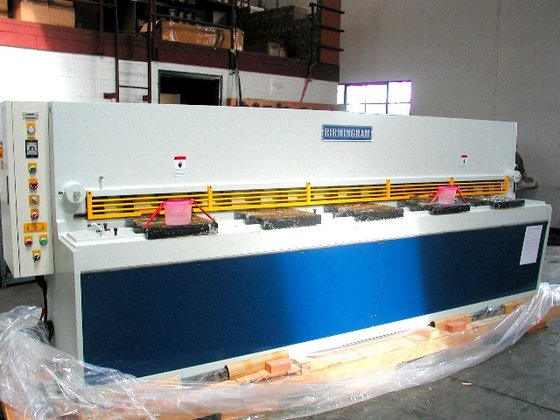

Image shown is similar model H-1035 (10' x 10 Ga. model)
Motor:
20 hp
Model 2:
H-1045 Made In Taiwan
Age info:
NEW
Back gauge:
24"
Mild steel:
7 Ga. (3/16")
Net weight:
10,600 lbs.
Blade length:
10'2"
Front support:
40"
Stainless steel:
11 Ga.
Cutting capacity:
10'
Oil tank capacity:
40 gallons
Hold-downs - number:
16
Top blade rake angle:
1/2-2 Degrees
Top blade rake adjust:
Hydraulic Adjustment Rake Angle
Strokes per minute (spm):
30-45
Hold-downs - pressure (tons):
9.6
Subcategory:
Shears
Subcategory 2:
New shears

Description

NEW Birmingham 10' x 7 Ga. Heavy Duty Hydraulic Shear
Model: H-1045 Made In Taiwan
Note: Image shown is similar model H-1035 (10' x 10 Ga. model)
SPECIFICATIONS:
Cutting Capacity: 10'
Mild Steel: 7 Ga. (3/16")
Stainless Steel: 11 Ga.
Blade Length: 10'2"
Strokes Per Minute (SPM): 30-45
Hold-Downs - Number: 16
Hold-Downs - Pressure (Tons): 9.6
Front Support: 40"
Back Gauge: 24"
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 20 hp
Oil Tank Capacity: 40 gallons
Net Weight: 10,600 lbs.
Overall Dimensions (w/o support arm): 158" x 50" x 65"
STANDARD EQUIPMENT:
Blades
24" manual back gauge
(2) 40" front support arms
40" squaring arm
Finder guard
Foot pedal
Shadow line lighting
OPTIONAL EQUIPMENT:
32" NC power back gauge w/ball screws & NC single axis control
59" squaring arm
79" squaring arm
118" squaring arm
59" front support arm
79" front support arm
118" front support arm
Pneumatic-type thin sheet supporter
Power back gauge with lifting function
Angle gauge
