0.25" Cap. 120" Width Birmingham
Location:
Harrison, NJ
Price:
$37,950 USD
Manufacturer:
Birmingham
Model:
H-1065
Capacity:
10'
Weight:
16,000 lbs.

Specifications

Condition:
new
Stock number:
137140
Note:

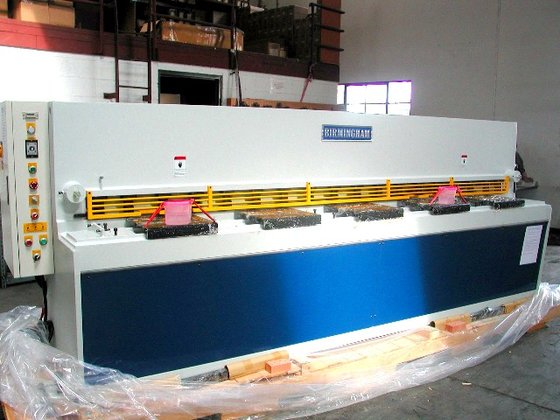

Image shown is similar model H-1035 (10' x 10 Ga. model)
Motor:
15 hp
Model 2:
H-1065 Made in Taiwan
Age info:
NEW
Back gauge:
32" N/C
Mild steel:
1/4"
Net weight:
16,000 lbs.
Blade length:
10' 2"
Front support:
40"
Stainless steel:
7 Ga. (3/16")
Cutting capacity:
10'
Oil tank capacity:
80 gallons
Hold-downs - number:
16
Top blade rake angle:
1/2-2 Degrees
Top blade rake adjust:
Hydraulic Adjustment Rake Angle
Strokes per minute (spm):
24-35
Hold-downs - pressure (tons):
16
Subcategory:
Shears
Subcategory 2:
New shears

Description

New Birmingham 10' x 1/4" Heavy Duty Hydraulic Shear
Model: H-1065 Made in Taiwan
Note: Image shown is similar model H-1035 (10' x 10 Ga. model)
SPECIFICATIONS:
Cutting Capacity: 10'
Mild Steel: 1/4"
Stainless Steel: 7 Ga. (3/16")
Blade Length: 10' 2"
Strokes Per Minute (SPM): 24-35
Hold-Downs - Number: 16
Hold-Downs - Pressure (Tons): 16
Front Support: 40"
Back Gauge: 32" N/C
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 15 hp
Oil Tank Capacity: 80 gallons
Net Weight: 16,000 lbs.
Overall Dimensions (w/o support arm): 158" x 70" x 85"
STANDARD EQUIPMENT:
Blades
24" manual back gauge
(2) 40" front support arms
40" squaring arm
Finder guard
Foot pedal
Shadow line lighting
Single axis 32" power back gauge
OPTIONAL EQUIPMENT:
59" squaring arm
79" squaring arm
118" squaring arm
59" front support arm
79" front support arm
118" front support arm
Pneumatic-type thin sheet supporter
Power back gauge with lifting function
Angle gauge
