Top Seller
14" Swing 40" Centers Birmingham
Location:
Harrison, NJ
Price:
$5,550 USD
Manufacturer:
Birmingham lathes
Model:
YCL-1440GH
Spindle Nose:
(spindle mount) D1-4

Specifications

Condition:
new
Stock number:
137169
Dro:
NEWALL DP-700, ACU-RITE, or UNIQ IMPORT
Weight:
2,000 lbs.
Age info:
NEW
Dimensions:
72 x 31 x 49"H
Main motor:
3hp, 220v, 3ph, 2-speed
Cross feeds:
0.0003 - 0.01"/rev. (40) kinds
Inch threads:
4 - 112 TPI (40) kinds
Spindle nose:
(spindle mount) D1-4
Width of bed:
8-1/8"
Metric threads:
0.45 - 7.5mm (22) kinds
Spindle speeds:
45 - 1,800 RPM, 16 Steps - 45, 70, 90, 108, 140, 165, 215, 255,
Swing over bed:
14"
Between centers:
40"
Max swing in gap:
20"
Longitudinal feeds:
0.0012 - 0.0294"/rev. (40) kinds
Max travel of cross slide:
7"
Max swing over cross slide:
8-5/8"
Diameter of tailstock quill:
2-3/4"
Spindle taper (with sleeve):
MT#5 (MT#3)
Max travel of compound slide:
4"
Diameter of spindle thru bore:
1-1/2"
Max travel of quillstock quill:
4-3/4"
Taper of tailstock quill center:
MT#3
Diameter of longitudinal leadscrew:
7/8"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

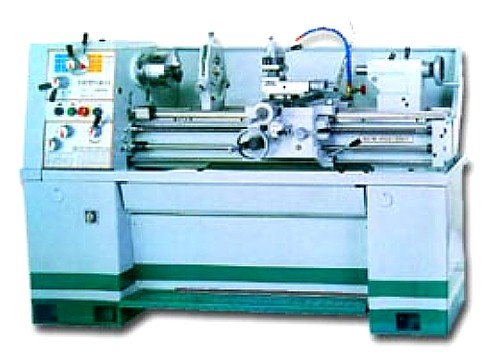

New 'Birmingham' 14" x 40" Precision Gap Bed Tool Room Lathe
Model: YCL-1440GH
SPECIFICATIONS:
Swing Over Bed: 14"
Between Centers: 40"
Max Swing Over Cross Slide: 8-5/8"
Max Swing In Gap: 20"
Width of Bed: 8-1/8"
Spindle Nose: (spindle mount) D1-4
Diameter of Spindle Thru Bore: 1-1/2"
Spindle Taper (with sleeve): MT#5 (MT#3)
Spindle Speeds: 45 - 1,800 RPM, 16 Steps - 45, 70, 90, 108, 140, 165, 215, 255,
330, 385, 510, 585, 770, 900, 1,170, 1,180 RPM
Longitudinal Feeds: 0.0012 - 0.0294"/rev. (40) kinds
Cross Feeds: 0.0003 - 0.01"/rev. (40) kinds
Inch Threads: 4 - 112 TPI (40) kinds
Metric Threads: 0.45 - 7.5mm (22) kinds
Diameter of Longitudinal Leadscrew: 7/8"
Pitch Threads of Longitudinal Leadscrew: 8 TPI
Max Travel of Cross Slide: 7"
Max Travel of Compound Slide: 4"
Max Travel of Quillstock Quill: 4-3/4"
Diameter of Tailstock Quill: 2-3/4"
Taper of Tailstock Quill Center: MT#3
Main Motor: 3hp, 220v, 3ph, 2-speed
Dimensions: 72 x 31 x 49"H
Weight: 2,000 lbs.
FEATURES:
Hardened and ground bedways and splined shafts in headstock.
16 speeds all geared headstock from 45 to 1800 RPM
D1-4 Spindle Nose w/1.5" Spindle Bore
3HP three phase 220 v motor
Foot brake giving rapid brake and built in coolant system.
Emergency stop button equippped on the front of headstock.
Jog button for easy engagement and including spindle.
Extra safety switch shuts down machine entirely for changing belt
or gear for threading cutting.
Open type chip pan easily to remove chips.
STANDARD EQUIPMENT:
6" 3 jaw chuck
8" 4 jaw chuck
10" faceplate
3-3/4" steady rest
Follow rest
Removable gap
4-way tool post
Stands
Thread chasing dial
(2) dead centers
Reducing sleeve
Full length splash guard
Chip tray
Foot brake
Halogen worklight
Coolant system
OPTIONAL EQUIPMENT (CALL FOR PRICING):
3 HP, 220V, 1-phase motor
Taper attachment, free install
11" face plate
5C hand lever type collet closer
5C collet chuck (front operate) D1-4 mount
Micro carriage stop
DRO: NEWALL DP-700, ACU-RITE, or UNIQ IMPORT
