- Harrison, NJ, USA
- $15,290 (USD)
- Birmingham bending machines
- Stock number:
- the photo is of model R-0545H (5' x 3/16" cap)
- 5 hp
- Model 2:
- R-0480H Made In Taiwan
- Age info:
- Net weight:
- 5,500 lbs.
- Packing size:
- 87" x 35" x 55"
- Pinch adjustment:
- Mild steel capacity:
- 4'3" x 4/16" (0.3125")
- Roll length & diameter:
- Bending machines in United States
- Bending rolls
- Subcategory 2:
- New bending rolls
New Birmingham 4' x 5/16" Hydraulic Plate Roll
Model: R-0480H Made In Taiwan

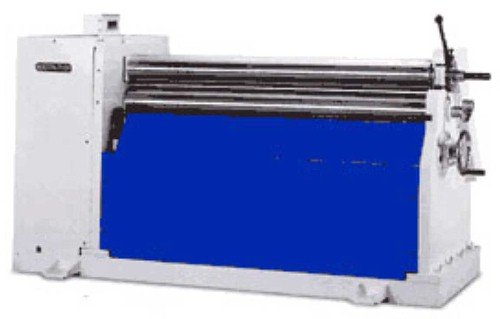

Note: the photo is of model R-0545H (5' x 3/16" cap)
Mild steel capacity: 4'3" x 4/16" (0.3125")
Roll Length & diameter: 7"
Pinch Adjustment: standard
Motor: 5 hp
Net weight: 5,500 lbs.
Packing size: 87" x 35" x 55"
All three rolls driven by hydraulic system.
Pinch roll cylinders adjustment synchronously.
Pinch roll is hydraulic powered up/down with digital counter for
showing pinch roll position, up/down parallel and tilting is ideal for
All rolls are made of top-grade alloy steel hardened up to HRC55! ,
with non-friction surface.
Rigid construction for precise and smooth operation, and long life.
The top roll can be swiveled out for easy removal of the finished
Removable foot control pedal for forward/reverse, fitted with a
