Top Seller
80" WIDTH 0.1046" THICKNESS Birmingham
Location:
Harrison, NJ
Model:
R-0625H

Specifications

Condition:
new
Stock number:
137256
Note:

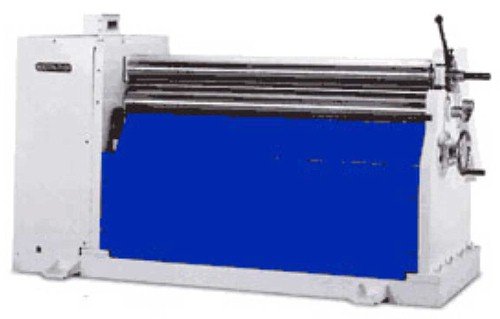

the photo is of model R-0545H (5' x 3/16" cap)
Motor:
2 hp
Age info:
NEW
Net weight:
5,500 lbs.
Packing size:
112" x 30" x 49"
Pinch adjustment:
standard
Mild steel capacity:
6'8" x 12 Ga (0.1046")
Roll length & diameter:
4-3/4"
Subcategory:
Bending rolls
Subcategory 2:
New bending rolls

Description

New "Birmingham" Initial Pinch Hydraulic Plate Roll
Model: R-0625H
80" x 12 Ga. Mild Steel
Note: the photo is of model R-0545H (5' x 3/16" cap)
SPECIFICATIONS:
Mild steel capacity: 6'8" x 12 Ga (0.1046")
Roll Length & diameter: 4-3/4"
Pinch Adjustment: standard
Motor: 2 hp
Net weight: 5,500 lbs.
Packing size: 112" x 30" x 49"
MAIN FEATURES:
All three rolls driven by hydraulic system.
Pinch roll cylinders adjustment synchronously.
Pinch roll is hydraulic powered up/down with digital counter for
showing pinch roll position, up/down parallel and tilting is ideal for
cones.
All rolls are made of top-grade alloy steel hardened up to HRC55! ,
with non-friction surface.
Rigid construction for precise and smooth operation, and long life.
The top roll can be swiveled out for easy removal of the finished
workpiece.
Removable foot control pedal for forward/reverse, fitted with a
protective housing.
