Top Seller
60" Table 5HP Spindle Birmingham
Location:
Harrison, NJ
Price:
$26,000 USD
Manufacturer:
Birmingham
Model:
BPV-B3V Bed-Type Mill

Specifications

Condition:
new
Stock number:
137294
Model 2:
BPV-B3V w/Inverter Drive
Age info:
NEW
Rpm/60 hz:
55 - 3650
Cross feeds:
0 - 10
Cross motor:
1 HP
Quill feeds:
0.0015, 0.003, 0.006"/REV
Coolant pump:
1/8 HP
Cross travel:
19-5/8"
Quill travel:
5"
Spindle motor:
5 HP WITH BRAKE
Spindle taper:
ISO 40
Quill diameter:
4.13"
Spindle speeds:
VARIABLE
Vertical feeds:
7/8 - 33-3/4"/MN
Vertical motor:
1/2 HP
Vertical travel:
23-5/8"
Longitudinal feeds:
0 - 10
Longitudinal motor:
1 HP
Longitudinal travel:
41-3/8"
Table working surface:
60" X 12"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

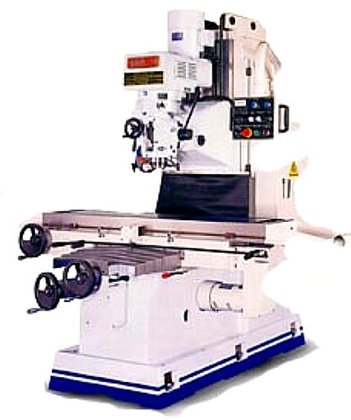

New Birmingham 12" x 60" Bed-Type 5 HP Milling Machine
Model: BPV-B3V w/Inverter Drive
STANDARD FEATURES:
GROUND WORK TABLE AND TEE SLOTS
HARDENED AND GROUND TABLE
3 AXIS PRECISION LEAD SCREWS
BOX WAY DESIGN ON Y & Z SLIDEWAYS
X & Z AXIS AC INVERTER CONTROLLED
INFINATELY VARIABLE SPEED FEED
WEAR RESISTANT TURCITE "B" ON X & Y SADDLE WAYS
105mm CHROMED QUILL
SPINDLE BEARING, CP4 ABEC 7 ANGULAR CONTACT BALL BEARINGS
SPINDLE ELECTRO - MAGNETIC BRAKE
Y AXIS STEEL GUARD & Z AXIS FLEXIBLE RUBBER GUARD
OVERARM CONTROL PANEL
FULL ELECTICS CABINET
AUTO LUBE SYSTEM
COOLANT SYSTEM
LOW VOLTAGE HALOGEN WORKLIGHT
Specifications:
TABLE WORKING SURFACE: 60" X 12"
LONGITUDINAL TRAVEL: 41-3/8"
CROSS TRAVEL: 19-5/8"
VERTICAL TRAVEL: 23-5/8"
LONGITUDINAL FEEDS: 0 - 10
1/8 - 43-1/4"/MN
CROSS FEEDS: 0 - 10
1/8 - 43-1/2"/MN
VERTICAL FEEDS: 7/8 - 33-3/4"/MN
QUILL TRAVEL: 5"
QUILL DIAMETER: 4.13"
QUILL FEEDS: 0.0015, 0.003, 0.006"/REV
SPINDLE TAPER: ISO 40
SPINDLE SPEEDS: VARIABLE
RPM/60 HZ: 55 - 3650
SPINDLE MOTOR: 5 HP WITH BRAKE
LONGITUDINAL MOTOR: 1 HP
CROSS MOTOR: 1 HP
VERTICAL MOTOR: 1/2 HP
COOLANT PUMP: 1/8 HP
MACHINE DIMENSIONS:
A/OVERALL HEIGHT BED 99"
COLUMN 85-3/8"
B/OVERALL DEPTH 70"
C/OVERALL WIDTH 93"
D/OVERALL CROSS WAY WIDTH 20-1/2"
E/SADDLE LENGTH 47-1/4"
SADDLE TO SPINDLE MIN 3"
MAX 26-1/2"
G/QUILL CENTER TO COLUMN 19"
H/COLUMN TO TABLE MIN 2-3/8"
MAX 22"
I/COLUMN TO HANDWHEEL 47-1/4"
J/HEAD SWIVEL RIGHT & LEFT EACH 45 DEGREE
Optional Equipment (call for pricing):
X & Y axis ballscrews
Z axis ballscrews
Newall digital readout, Topaz, 3 axis (free installation)
Power air draw bar (free installation)
6" anglock precision vise with swivel base
8" anglock precision vise with swivel base
Clamping kit, P.N CK-52, 52 pcs. 5/8" T-slot, 1/2" 13NC stud
