Top Seller
29" Table 1HP Spindle Rong
Location:
Harrison, NJ
Price:
$2,300 USD
Manufacturer:
Rong Fu
Model:
RF-40 Geared Head Mill/Drill
Weight:
720 lbs w/ stand

Specifications

Condition:
new
Stock number:
137298
Swing:
21"
Weight:
720 lbs w/ stand
Model 2:
RF-40
Age info:
NEW
End mill:
1-1/4"
Face mill:
4"
Head swivels:
360 degrees
Head tilting:
90 deg left & 45 deg right
T-slots size:
(4) 5/8"
Spindle taper:
R8
Spindle speeds:
(6) 60, 130, 230, 450, 800,1500
Drilling in steel:
1-1/4"
Cross table travel:
9"
Diameter of column:
4-1/2"
Optional equipment:
(call for pricing)
Table surface area:
8-1/4" x 28-3/4"
Dimensions w/ stand:
73-1/2" x 31-1/2" x 43-1/2" (HxWxD)
Spindle to table-max:
18-1/2"
Spindle/quill travel:
5-1/8"
Drilling in cast iron:
1-9/16"
Spindle to column-max:
6-1/2"
Spindle / quill diameter:
3"
Longitudinal table travel:
19-3/4"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

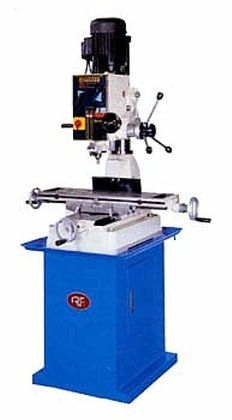

New Birmingham 8-1/4" x 28-3/4" Table
Rong Fu Bench-Top Geared Head
Single Speed Motor, Vertical Mill-Drill
Model: RF-40
MADE IN TAIWAN
Specifications:
Swing: 21"
Table surface area: 8-1/4" x 28-3/4"
Spindle Speeds: (6) 60, 130, 230, 450, 800,1500
Longitudinal Table Travel: 19-3/4"
Cross Table Travel: 9"
T-Slots Size: (4) 5/8"
Spindle/quill travel: 5-1/8"
Spindle Taper: R8
Spindle / Quill Diameter: 3"
Spindle to table-max: 18-1/2"
Spindle to column-max: 6-1/2"
Diameter of column: 4-1/2"
Head Tilting: 90 deg left & 45 deg right
Head Swivels: 360 degrees
Capacity:
Drilling in steel: 1-1/4"
Drilling in cast iron: 1-9/16"
End Mill: 1-1/4"
Face Mill: 4"
Motor & Electrics:
1hp, 110v/220v, 1ph, Prewired 110v OR
1hp, 220v/440v, 3ph, Prewired 220v
Weight: 720 lbs w/ stand
Dimensions w/ stand: 73-1/2" x 31-1/2" x 43-1/2" (HxWxD)
Standard Equipment:
R-8 Shell Mill Arbor
Forward/Reverse switch, and drawbar
Optional Equipment: (call for pricing)
Deluxe cabinet stand w/ chip pan
R8 Collet Sets (11pcs)
52 pc clamping kit
Work light
Floor-type coolant system
Table Power Feed
3-1/2" angle drill press vise
1/2" drill chuck w/key
Drill chuck arbor R8/JT6
3" Face mill cutter, chuck safety guard
Tapping control
Inverter drive variable speed
