Top Seller
32" Table 1.5HP Spindle Rong
Location:
Harrison, NJ
Price:
$2,950 USD
Manufacturer:
Rong Fu
Model:
RF-45 Geared Head Mill/Drill

Specifications

Condition:
new
Stock number:
137299
Motor:
1-1/2hp
Model 2:
RF-45
Age info:
NEW
Head tilting:
90 deg left, 45 deg right
Spindle taper:
R8
Spindle speeds:
(6) 60, 130, 230, 450, 800, 1500 RPM
Cross table travel:
8-1/4"
Table surface area:
9-1/2" x 32-1/4"
Spindle/quill travel:
5-1/8"
Longitudinal table size:
20-1/2"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

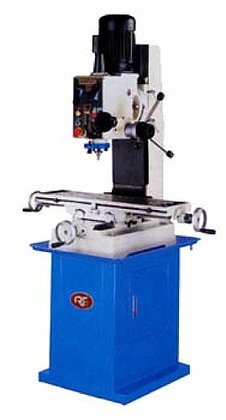

New Birmingham Rong Fu 21" Swing with Tilting Head Bench-Top Geared Head Vertical Mill-Drill
Model: RF-45
Made In Taiwan
SPECIFICATIONS:
Swing - 20"
Table Surface Area: 9-1/2" x 32-1/4"
Spindle Speeds: (6) 60, 130, 230, 450, 800, 1500 RPM
Longitudinal Table Size: 20-1/2"
Cross table travel: 8-1/4"
No. of T slots - 4 (5/8")
Spindle/quill travel: 5-1/8"
Spindle Taper: R8
Spindle quill dia. - 3"
Spindle to table max. - 18"
Spindle to column max. - 10"
Square Column - 36.2"H x 11"W, dovetail guide ways
Head Tilting: 90 deg left, 45 deg right
Drilling cap.:
1.25" Steel
1.5" Cast iron
3/4" End mill
4" Face mill
Motor: 1-1/2hp
Available in 110/220v 1 ph. or 220/440v 3 ph.
Overall dimensions - 43D x 38W x 44"H w/o stand,
43x38x74"H w/stand
Approx. net weight - 800 lbs w/o stand, 870 lbs w/stand Approx.
Standard Equipment:
R8 Shell Mill Arbor
Forward/reverse switch
Draw bar
Optional Equipment:
Deluxe cabinet stand w/ chip pan
R8 Collet Set (11pc)
52 pc Clamping Kit
Work Light
Floor-type Coolant System
3-1/2" Angle Drill Press Vise
1/2" Drill w/key
Drill chuck arbor R8/JT6
3" Face mill cutter
Table Power Feed
Tapping control
Chuck safety guard
Inverter drive, variable speed
