12.6" Dia. 20" Length Supertec
Location:
Harrison, NJ
Price:
$118,900 USD
Model:
G32P-50CNC
Grinding Length:
4.33" or 2.17"
Weight:
9240 lbs

Specifications

Condition:
new
Stock number:
137674
Note:

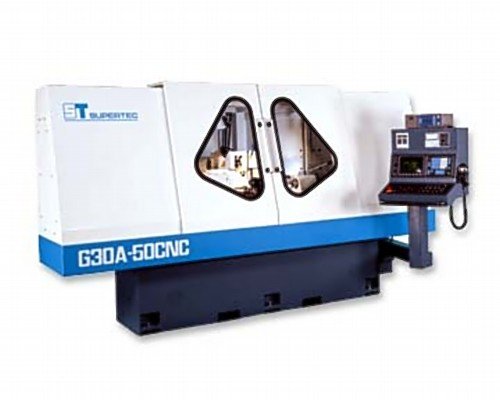

PHOTO SHOWS G30A-50CNC MODEL
Age info:
NEW
Wheel speed:
1390 rpm
Center taper:
MT4 (option MT5)
Coolant pump:
.25 HP
Spindle type:
Fixed & Rotary
Infeed travel:
9"
Sliding angle:
90 degrees
Spindle speed:
12000/18000 rpm (std.) or 25000 rpm (opt.)
Hydraulic pump:
2 HP
Workhead motor:
2 HP
Rapid feederate:
0-393 in/min
Diameter of bore:
0.91"
Lubrication pump:
.25 HP
Swing over table:
12.6"
Packing dimension:
137"x 92"x 82"(L x W x H)
Max. grinding bore:
1.18"-3.94" or 0.79" - 1.97"
Min. increment feed:
0.0001"
Wheel spindle motor:
7.5 HP
Max. chucking length:
8" ~ 12.4"
Max. grinding length:
4.33" or 2.17"
Max. peripheral speed:
109 ft/sec
Min. increment infeed:
0.000010"
Max. chucking diameter:
6"
Max. grinding diameter:
12"
Diameter x width x bore:
18"x 2"x 6"
Automatic rapid traverse:
236 in/min
Distance between centers:
20"
Spindle speed (variable):
30~350 rpm
Max. load between centers:
330 lbs
Net weight (semi-enclosed):
9240 lbs
Table (z axis) motor [fanuc]:
0.8 HP
Gross weight including packing:
10120 lbs
Wheelhead (x axis) motor [fanuc]:
0.8 HP

Description

NEW SUPERTEC CNC UNIVERSAL CYLINDRICAL GRINDER
12.6" x 20" MODEL G32P-50CNC w/Straight Wheelhead
NOTE: PHOTO SHOWS G30A-50CNC MODEL
FEATURES:
- FANUC Oi-TC CNC control, Fanuc AC drives and servo motors,
with 2 year Fanuc warranty.
- Heavily ribbed box-type base is made of Meehanite
castings, providing excellent rigidity to ensure machine
stability.
- Table is fully supported in the full travel to avoid overhang.
- Hydraulics, coolant and lubrication systems are separated
from machine to eliminate vibration and dissipate heat.
- Generously proportioned, the enlarged and properly sloped
drainage troughs underneath the wheelhead base provides rapid
coolant drainage needed during heavy duty grinding and prevents
thermal distortion of base.
- Sturdy rigid-designed workhead is electronically controlled
giving variable spindle speeds. Workhead swivels 90°CCW to 30°CW
for various grinding operations. A dual oil seal and cover
prevents coolant seepage into the workhead.
- The design of the tailstock is both rigid and robust. Housed
in a cast body, the hardened nitralloy steel sleeve is designed
to carry a MT4 center for G32/G38 and a MT3 Center forG20/G25.
- An Optional hydraulic tailstock with foot pedal is available
for easy loading and unloading of parts.
- A combination of hydrostatic and hydrodynamic bearings,
surrounded by a high pressure oil film, eliminates metal to metal
contact to provide high rigidity as well as high vibration
damping performance. (Except G20P/G25P)
- A pressure switch interlock prevents spindle start-up until
oil pressure is established. This pressure switch interlock also
stops the spindle if oil pressure fails.
- The One V and one flat hand-scraped guideways are Turcite
coated and incorporated with an automatic lubrication system,
precision ballscrew, AC servo motor and a 0.000004" linear
feedback system to ensure smooth movement of the wheelhead for
superior positioning accuracy and repeatability.
- The Rigid table with box-type structure travels on a cushion
of oil with no metal-to-metal contact.
- Z-axis positioning accuracy and repeatability is assured with
an AC servo motor and high precision, pre-tensioned ballscrews.
- A swiveling table dial indicator enables rapid cylindricity
corrections and taper grinding applications.
- Slideways, ballscrews and spindle are continuously lubricated
by an auto-lube system to ensure long service life and maintain
maximum accuracy.
- A highly-automated grinding system can be customized with a
wide selection of optional equipment...including an automatic OD
sizing device, gap control, crash control and touch probe for axial
positioning.
- The hinged, swing-down internal grinding attachment (optional)
swings down into working position easily and quickly. A patented
locking device adds safety as it prevents the ID attachment from
swinging down abruptly. (Except G32A/38A Series)
SPECIFICATIONS:
GENERAL CAPACITY
Swing over table: 12.6"
Distance between centers: 20"
Max. grinding diameter:
