Top Seller
12.6" Dia. 24" Length Supertec
Location:
Harrison, NJ
Price:
$49,900 USD
Manufacturer:
Supertec
Model:
G32P-60M
Weight:
8580lbs

Specifications

Condition:
new
Stock number:
137699
Note:

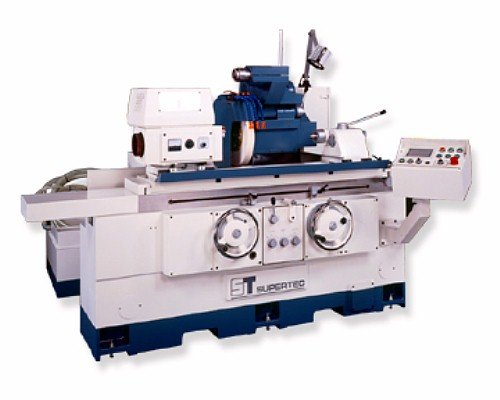

PHOTO SHOWS THE CII AUTO INFEED MODEL
Age info:
NEW
Net weight:
8580lbs
Wheel speed:
1650 rpm
Center taper:
MT4 (option MT5, 5C)
Coolant pump:
.25HP(2P)
Gross weight:
9460lbs
Quill travel:
1"
Infeed travel:
9.6"
Spindle speed:
G32P/G38P 12000/18000 rpm or 25000 rpm
Center taper 2:
MT4 (option MT5)
Hydraulic pump:
2HP(4P)
Workhead motor:
2HP(4P)
Hand feed travel:
7.8"
Swing over table:
12.6"
Packing dimension:
119"x90"x79"(L x W x H)
Max. grinding bore:
4.33" or 2.17"
Wheel spindle motor:
7.5HP(4P)
Max. chucking length:
8"~12.4"
Swiveling angle (r&l):
±30°
Automatic rapid travel:
1.75"
Handwheel per division:
0.0002"
Max. chucking diameter:
6"
Max. grinding diameter:
12"
Swivelling angle (r&l):
±9°
Diameter x width x bore:
16" x 2" x 5"
Internal grinding motor:
2HP(2P)
Swiveling angle (r&l) 2:
90°
Distance between centers:
24"
Handwheel per revolution:
0.08"
Top slide sliding travel:
7"
Handwheel per revolution 2:
0.39"
Spindle speed (infi variable):
30~350 rpm
Max. load held between centers:
330 lbs
Traverse speed (infi variable):
1.2"~275"/min

Description

NEW SUPERTEC UNIVERSAL CYLINDRICAL GRINDER
12.6" x 24" MODEL G32P-60M w/Manual Infeed
NOTE: PHOTO SHOWS THE CII AUTO INFEED MODEL
FEATURES:
- Heavily ribbed box-type base is made of Meehanite castings,
providing excellent rigidity to ensure machine stability.
- Hydraulics, coolant and lubrication systems are separated
from machine to eliminate vibration and dissipate heat.
- Sturdy rigid-designed workhead is electronically controlled
giving variable spindle speeds ranging from 30-350RPM.
Workhead swivels 90°CCW to 90°CW for various grinding operations.
- A dual oil seal and cover prevents coolant seepage into the workhead.
- The design of the tailstock is both rigid and robust. Housed in
a cast body, the hardened nitralloy steel sleeve is designed to
carry a MT4 center.
- Optional hydraulic tailstock with foot pedal is available for
easy loading and unloading of parts.
- Cartridge type wheel spindle is equipped with four super precision
class 7 (ABEC) bearings incorporated with 7 1/2 HP spindle motor
ensure high accuracy.
- One V and one flat hand-scraped guideways are Turcite coated and
incorporated with an automatic lubrication system and micro-stepping
motor. Smooth movement of the wheelhead delivers longer way life
with superior positioning accuracy and repeatability.
- A special upper slide design adds 7" (180mm) in total wheelhead
travel and increases grinding capacity.
- Rigid table with box-type structure travels on a cushion of oil
with no metal-to-metal contact.Table is fully supported in the full
travel to avoid overhang.
- A swiveling table dial indicator enables rapid cylindricity
corrections and taper grinding applications.
- Slideways, leadscrews are continuously lubricated by an auto-lube
system to ensure long service life and maintain maximum accuracy.
- The hinged, swing-down internal grinding attachment (optional)
swings down into working position easily and quickly. A patented
locking device adds safety as it prevents the ID attachment from
swinging down abruptly.
SPECIFICATIONS:
GENERAL CAPACITY
Distance Between Centers: 24"
Swing Over Table: 12.6"
Max. Grinding Diameter: 12"
Max. Load Held Between Centers: 330 lbs
WHEELHEAD
Hand feed travel: 7.8"
Handwheel per division: 0.0002"
Handwheel per revolution: 0.08"
Infeed travel: 9.6"
Top slide sliding travel: 7"
Swiveling angle (R&L): ±30°
Automatic rapid travel: 1.75"
GRINDING WHEEL
Diameter x Width x Bore: 16" x 2" x 5"
Wheel speed: 1650 rpm
TABLE
Swivelling angle (R&L): ±9°
Traverse speed (infi variable): 1.2"~275"/min
Handwheel per revolution: 0.39"
WORKHEAD
Swiveling angle (R&L): 90°
Center taper: MT4 (option MT5, 5C)
Spindle speed (infi variable): 30~350 rpm
TAILSTOCK
Center taper: MT4 (option MT5)
Quill travel: 1"
INTERNAL GRINDING SPINDLE
Spindle speed:G32P/G38P 12000/18000 rpm or 25000 rpm
Max. grinding bore: 4.33" or 2.17"
Max. chucking length: 8"~12.4"
Max. chucking diameter: 6"
MOTOR
Wheel spindle motor: 7.5HP(4P)
Workhead motor: 2HP(4P)
Hydraulic pump: 2HP(4P)
Coolan
