16" Swing 60" Centers Birmingham
Location:
Harrison, NJ
Price:
$10,250 USD
Manufacturer:
Birmingham lathes
Model:
YCL-1660
Spindle Nose:
Camlock D1-6

Specifications

Condition:
new
Stock number:
137792
Dro:
NEWALL DP-700, UNIQ IMPORT
Age info:
NEW
Inch threads:
4 - 112 - TPI, 60 Kinds
Spindle nose:
Camlock D1-6
Width of bed:
11.8"
Metric threads:
0.1 - 7 mm, 34 Kinds
Spindle speeds:
25 - 2,000 RPM, 12 Steps
Swing over gap:
25.1"
Cross slide travel:
12.1"
Compound rest travel:
5"
Swing over cross slide:
8.8"
Effective length in gap:
9-1/2"
Diameter of tailstock quill:
2.3"
Diameter of spindle thru bore:
2.28"
Max. travel of tailstock quill:
4.8"
Taper of tailstock quill center:
MT#4
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

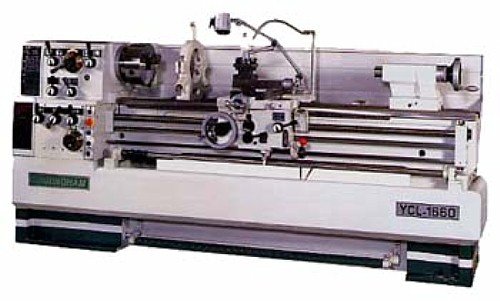

New Birmingham 16" x 60" Precision Gap Bed Lathe
Model: YCL-1660
SPECIFICATIONS:
Swing Over Bed 16.1"
Swing Over Cross Slide: 8.8"
Swing Over Gap: 25.1"
Between Centers 60"
Width of Bed: 11.8"
Effective Length in Gap: 9-1/2"
Width of Bed: 11.8"
Spindle Nose: Camlock D1-6
Diameter of Spindle Thru Bore: 2.28"
Spindle Speeds: 25 - 2,000 RPM, 12 Steps
Cross Slide Travel: 12.1"
Compound Rest Travel: 5"
Metric Threads: 0.1 - 7 mm, 34 Kinds
Inch Threads: 4 - 112 - TPI, 60 Kinds
Diameter of Tailstock Quill: 2.3"
Taper of Tailstock Quill Center: MT#4
Max. Travel of Tailstock Quill: 4.8"
Standard Equipment:
3 jaw chuck
4 jaw chuck
Face plate
Steady rest w/roller jaws
Follow rest
Removable gap
4-way tool post
Thread chasing dial
(2) dead centers
Reducing sleeve
Full length splash guard
One piece cast iron base
Foot brake
Halogen work light
Coolant system
Leveling pads
4-position auto kick-out longitudinal carriage stop
Tool box
Taper turning attachment
Optional Equipment (call for pricing):
5C hand lever type collet closer
5C collet chuck (front operate) D1-6 mount
DRO: NEWALL DP-700, UNIQ IMPORT
