Top Seller
0.3125" Cap. 144" Width Birmingham
Location:
Harrison, NJ
Price:
$29,700 USD
Manufacturer:
Birmingham
Model:
H-1280-C
Capacity:
12' x 5/16"
Weight:
24,250 Lbs

Specifications

Condition:
new
Stock number:
138048
Note:

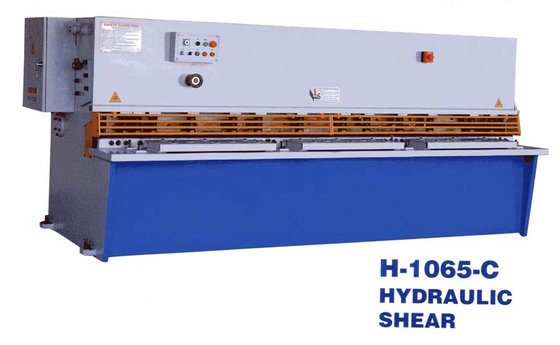

Images shown are of models H-1065-C & H-12130-C
Model 2:
H-1280-C (12' x 5/16") - made in China
Age info:
NEW
Capacity:
12' x 5/16"
Main motor:
15 hp
Shear angle:
1 deg. 30'
Overall size:
15.3' L x 5.6' D x 5.6' H
Table height:
31.5"
Machine weight:
24,250 Lbs
Hydraulic oil cap:
71 Gal.
Range of back gauge:
0.78" - 24"
No load strokes per minute:
8
Subcategory:
Shears
Subcategory 2:
New shears

Description

New "Birmingham" Heavy Duty Hydraulic Shear
Model: H-1280-C (12' x 5/16") - made in China
144" x 5/16" Mild Steel
Note: Images shown are of models H-1065-C & H-12130-C
MAIN FEATURES:
- High carbon, high chrome shear blades
- Manual quick change blade gap adjustment
- Front controlled power operated backgauge
- Hydraulic, electrical overload protection
- Automatic swing-up backgauge
- Swing beam design
- Operator control console
- Low noise gear pump
- Pressure sensing hold-downs
- Hold-downs faced with anti-mar neoprene
- Shadow lighting
- Stroke counter
- Electric stroke adjustment
- Blade guard, micro switch protection
- Bolt-on table segments
- 1" Ball transfers
- Squaring arm, 43-1/2" from blade to end
- (3) support arms
SPECIFICATIONS:
Capacity: 12' x 5/16"
Shear angle: 1 deg. 30'
No load strokes per minute: 8
Range of back gauge: 0.78" - 24"
Main motor: 15 hp
Hydraulic Oil Cap: 71 Gal.
Table Height: 31.5"
Overall Size: 15.3' L x 5.6' D x 5.6' H
Machine Weight: 24,250 Lbs
OPTIONAL ACCESSORIES (call for pricing):
- 3-Axis CNC Programmable Backgauge SIEMENS:
Touch screen operated
Controls backgauge depth, blade gap adjustment, stroke length
200 Program storage capacity
Can be operated in manual or automatic mode
- "Go-To" Backgauge, Mitsubishi, 36" travel, 10 steps
- Pneumatic sheet lift
- Material support
- Front & rear protection guards
- 48" Backgauge
- 6' Squaring arm
- 8' Squaring arm
- 10' Squaring arm
