Top Seller
0.5" Cap. 96" Width Birmingham
Location:
Harrison, NJ
Price:
$27,000 USD
Manufacturer:
Birmingham
Model:
H-08130-C
Capacity:
8' x 1/2"
Weight:
24,250 Lbs

Specifications

Condition:
new
Stock number:
138052
Note:

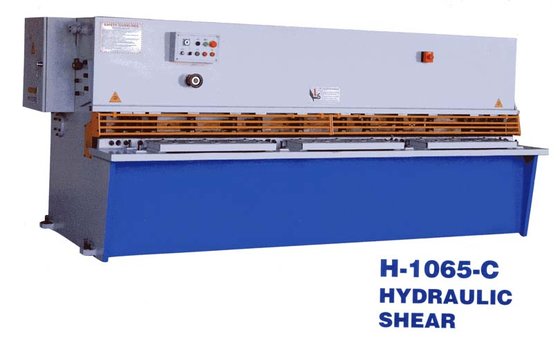

Images shown are of similar model H-1065-C
Model 2:
H-08130-C MADE IN CHINA
Age info:
NEW
Capacity:
8' x 1/2"
Main motor:
25 hp
Shear angle:
1 deg. 48'
Overall size:
11' L x 6.7' D x 5.9' H
Table height:
31.5"
Machine weight:
24,250 Lbs
Hydraulic oil cap:
71 Gal.
Range of back gauge:
0.78" - 32"
No load strokes per minute:
12
Subcategory:
Shears
Subcategory 2:
New shears

Description

NEW BIRMINGHAM 8' x 1/2" HEAVY DUTY HYDRAULIC SHEAR
MODEL: H-08130-C MADE IN CHINA
Note: Images shown are of similar model H-1065-C
SPECIFICATIONS:
Capacity: 8' x 1/2"
Shear angle: 1 deg. 48'
No load strokes per minute: 12
Range of back gauge: 0.78" - 32"
Main motor: 25 hp
Hydraulic Oil Cap: 71 Gal.
Table Height: 31.5"
Overall Size: 11' L x 6.7' D x 5.9' H
Machine Weight: 24,250 Lbs
STANDARD EQUIPMENT:
Manual quick change blade gap adjustment
24" front controlled power backgauge
Pressure sensing holding-downs
Shadow lighting
Squaring scale plate
3 support arm
OPTIONAL EQUIPMENT:
3 axis CNC programmable backgauge (touch screen operated, controls backgauge depth, blade gap adjustment,
stroke length; 10 program storage capacity; can be operated in manual or automatic mode)
Change to 36" power back gauge
6' pneumatic sheet lift
8' pneumatic sheet lift
10' pneumatic sheet lift
Material support
6' squaring arm
8' squaring arm
10' squaring arm
